Printer Ultra 9200 3302S

Printing Width:3.20m

 Print Head: Epson DX7

Print Head Quantity: 2 pcs

Inks: Water Based or Eco-solvent Based

RIP Software: Maintop or Photoprint RIP software

Speed:  H2  24- 62sqm/hr

New! 3rd Generation 9200 Series,

12 Items Improvements,

Beyond Your Expectations!

I. Controlling System-Higher Precision, Higher Productivity, Easy Operation

a. Adopted New Epson 720 Gray Scale Controlling System.

b. Industry leading technology of gray scale printing by minimum dot size.

c. 20% faster than previous system.

d. One time RIP supporting multimode printing.

e. X, Y bidirectional error correction while printing.

f. Adjustable vacuum power in print head maintenance station.

II. Mechanical System-Competing with Japanese Printer's Mechanical Precision

a. The printer's weight is about 40 kg heavier than previous design, the precision tolerance of Rail Beam and Printing Panel is less than 0.2 mm.

b. Fire new media feeding system with higher motion accuracy.

c. New pinch roller guaranteed the media feeding precisely.

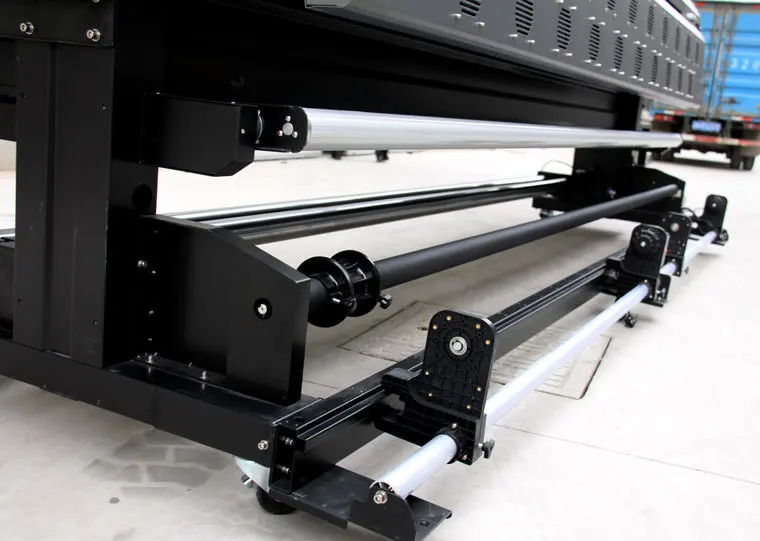

d. Double power media take-up system allows to take up heavier materials.

III.Record-breaking Speed

Equipped with 2 pcs Epson DX7 Print Head, the 3 Pass printing speed is more than 62 sqm/hr.
