SFP1804

Model Name:
SFP1804
Product Description

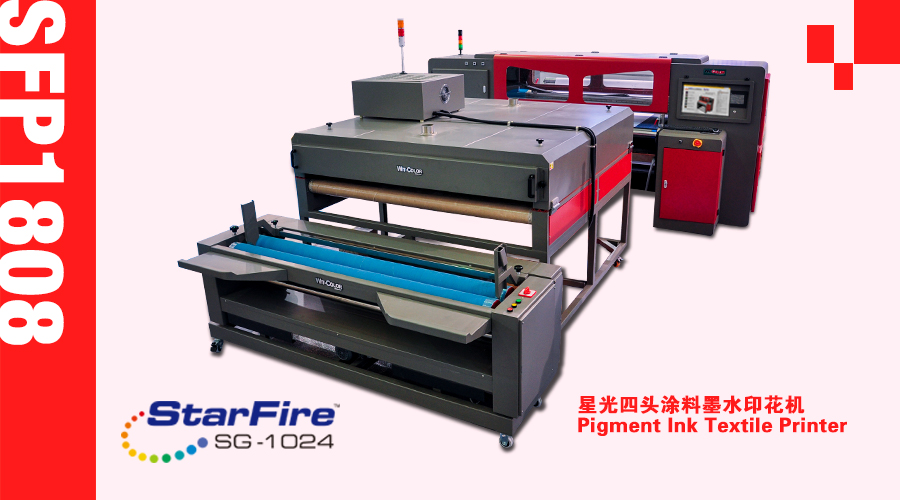

Wit-Color textile direct printer SFP 1804 / 1808. Adopted 4pcs or 8pcs StarFire-1024 printheads. The maximum printing width is 1.8m. It can print on polyester, cotton, flax fabrics, ect.

Previous : SFR1804

Next : Belt printer TC2008

PRODUCTS

All Series: Latest Printers; Solvent Series Printers; UV Series Printers; Eco-solvent Series Printers; Textile Series Printers; Consumables

Hot News: The ERA of StarFire !; Wit-Color | 2016 Shanghai Int'l Ad & Sign Technology & Equipment Exhibition; Wit-Color | 2016 D-PES Exhibition (Spring); Wit-Color Gained A Successful Ending on 2015.3 Shanghai Int'l Ad & Sign Expo.; 2015 D·PES Sign Expo - Spring · Guangzhou, China

Printer Model		SFP1804/1808
Print Head	P.H. Model	StarFire 1024 25PL
	P.H.Height	Adjustable
Printing Width		1.8m ( 5.9ft )
Printing Speed	Printing Mode	4H	8H
	1Pass	N/A	N/A
	2Pass	78 sqm/h	155sqm/h
	3Pass	57 sqm/h	110sqm/h
	4Pass	45 sqm/h	83.7sqm/h
Ink Type		Reactive, Acid, Pigment, Disperse Ink
Ink Color		CMYK, LC,LM,Organge,Grey,Blue,Red, Fluorescent Red, Fluorescent Yellow.
Media	Media width	1.8m
	Media Processing	1.8m
	Media Heating	Infrared heating ( Optional )
	Media Type	Suitable for Cotton, Flex, Silk, Wool, Nylon, Polyester Fabrics, etc.
Image Format		TIFF, JPG, EPS, PDF
RIP Software		Maintop / Photoprint ( Optional )
Interface		PCI LVDS（Windows 2000 / NT / XP etc.）
Operating System		Windows XP / Win7 Workstation
Power Supply		AC220V , 50HZ±10%, UPS is required
Power		Printer：3600W Tunnel Oven：25000W
PC Configuration		System: Windows XP SP2 (English Version) / Windows 7 (Professional Version) CPU: Intel Dual Core i5 RAM: KST 4GB Hard Disk: WD 500G Hard Disk Format: NTFS VGA Card: SDC ATI 1G CD Rom: DVD Recordable
Temperature /Humidity		Temperature 20-30℃, Humidity 60-70%
Packing Size		L/W/H Printer : 3.95 x 2.30 x1.82m; Tunnel Oven : 2.2x2.2x1.9m; Auto-Edging Take Up System:2.5x1.12x1.02m; Heating system: 2.53x1.00x1.35m
G.W./ N.W.		Printer: 1800kg / 1450kg; Tunnel Oven: 400kg/300kg; Auto-Edging Take Up System:340kg/240kg; Heating system: 300kg/200kg
Remark: The data is subject to change without prior notice. The speed will be varied due to different PC settings.
