• Printer Ultra 9100 1601S
  • Model Name:

    Printer Ultra 9100 1601S

  • Product Description
  • Printing Width:1.5m
    Print Head: Epson DX5
    Print Head Quantity: 1 pc
    Inks: Water Based or Eco-solvent Based
    RIP Software: Maintop or Photoprint RIP software
    Speed:  H1 13-21sqm/hr

Follow Us: Facebook Twitter LinkedIn Google+ Addthis

Wit-Color 2017 NEW Design Eco-Solvent printer Ulltra 9100 1601s

For Indoors Advertising Images Use with High Resolution
1.Epson DX5 Print head
2.Max Printing Width is 1.6m
3.High Quality !

High Resolution Better Pefermance!



Front

Left side

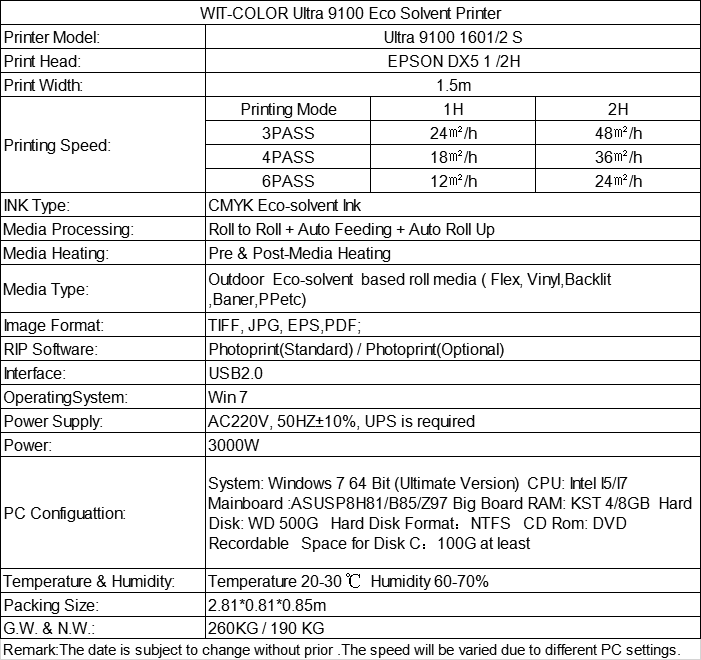

Printer Ultra 9100 1601S Technical Specifications

  Ultra 9100 Indoor & Outdoor Printer
Printer Model ULTRA 9100 1601S
Print Head Quantity Epson DX5 1pcs
Printing Width 1.5m
Printing Speed Resolution Printing Speed H1
360×1080dpi(3Pass) 31/h
360×1440dpi(4Pass) 21/h
360×2160dpi(6Pass) 12/h
Color Mode 16.7million CMYK
Ink CMYK      Eco-solvent Inks
Media Media Width 1.5m
Media Handling Roll to Roll+Auto Roll Up
Media Heating Pre & Post-Media Heating
Media Drying Carbon Fiber Drying System
Media Types W Series: Water based on media
(Photo Paper, Vinyl, PP, Film, etc)
S Series: Outdoor Eco-solvent based roll media(Flex, Vinyl, Leather, etc)
Image Format TIFF, JPG, EPS, PDF
RIP Software Maintop (Photoprint Optional)
Interface USB2.0 (Windows 7)
Operation System Win 7  Workstation
Power Supply AC220V  50HZ±10%, UPS is required
Power 3000W
PC Configeration System:
Win7 64bit (Professional or Ultrimate Version)
CPU: Intel Dual Core I5         RAM:4GB
Hard Disk: SATA 640G         Hard Disk Format: NTFS
VGA Card: SDC ATI 1G       CD Rom: DVD Rom
Space for Disk C: 100G at least
Temperature / Humidity Temperature , Humidity 60-70%
Packing Size L/W/H: 2.81×0.81×0.84m
G.W. / N.W. 260kgs / 190kgs
Remarks: The data is subject to change without prior notice. The speed will be varied due to different PC settings.
