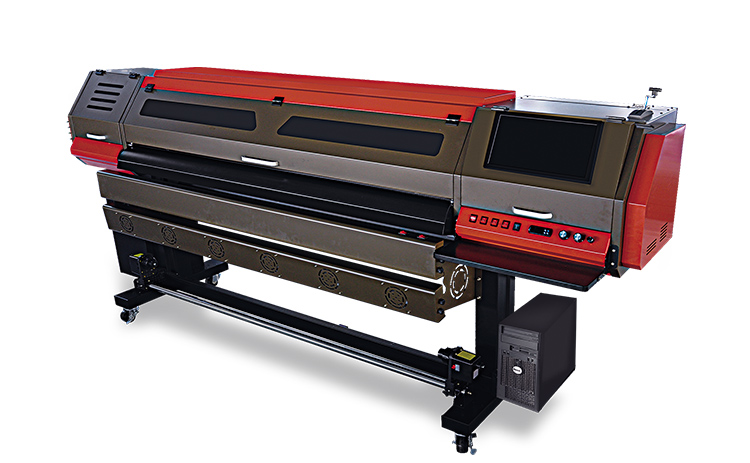

Newest 1.9m StarFire Industrial Eco-solvent Printer
Printer Model		Ultra Star 2302 / 2303

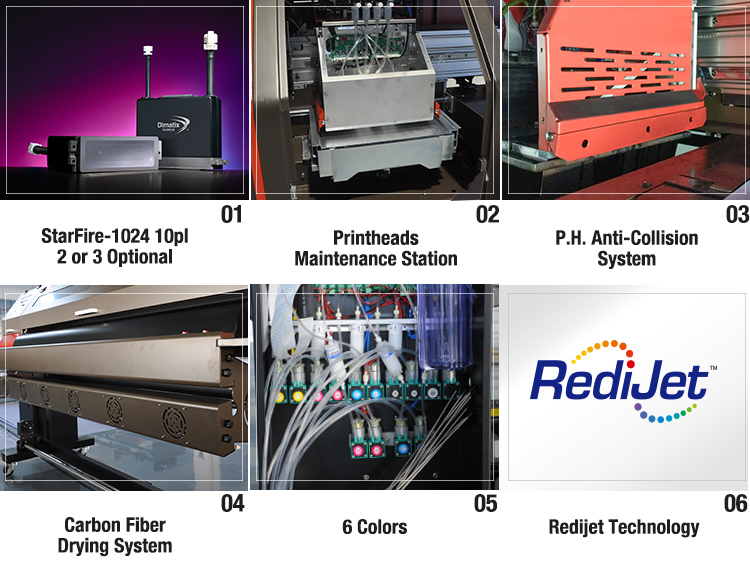

Print Head		StarFire 1024 10PL
Printing Width		2.2 m
Printing Speed	Printing Mode	H2	H3
	2 PASS	110 ㎡/h	80 ㎡/h
	3 PASS	70 ㎡/h	60 ㎡/h
	4 PASS	50 ㎡/h	50 ㎡/h
Ink Type		CMYK Solvent Ink
Media	Media Processing	Roll to Roll + Auto Feeding + Auto Roll Up
	Media Heating	Pre&Post-Media Heating
	Media Type	Outdoor Solvent based roll media(Flex,Vinyl,Backlit Banner etc)
Image Format		TIFF, JPG, EPS, PDF
RIP Software		Maintop / Photoprint (Optional)
Interface		High Speed PCI LVDS（Windows 2000 / NT / XP, etc.）
Operating System		Windows XP / Win7 Workstation
Power Supply		AC220V 50HZ±10%,UPS is required
Power		2800W
PC Configuration		System: Windows XP SP2 (English Version) / Windows 7 (Professional Version) CPU: Intel Dual Core i5 RAM: KST 4GB Hard Disk: WD 500G Hard Disk Format: NTFS VGA Card:SDC ATI 1G CD Rom: DVD Recordable Space for Disk C：100G at least
Temperature/Humidity		Temperature 20-30℃, Humidity 60-70%
Packing Size		L/W/H: 3.35 x 1.06 x 1.66 m
G.W./N.W.		360kg/270kg
Remark: The data is subject to change without prior notice. The speed will be varied due to different PC settings.
