Model	Ultra i3200 1702TP
Printing Technology	Transfer Paper Printing
Print Head	EPSON i3200
Acceptable Media	Type	TransferPaper
	Width	≦1620mm
Ink Type	CMYK Eco-solvent Ink
Ink Supply	Siphon ink supply
Ink Cartridges	Capacity	Color Siphon
	Color	CMYK
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Maintop(standard) Photoprint/ Print Factory(optional)
Printing Resolution	Maximum
Speed	Mode	2H
	3 Pass	68㎡/h
	4 Pass	50㎡/h
	6Pass	35㎡/h
Ink Drying Method	Infrared Heater Drying
Control System	Win10
Power	6100W
Interface	USB3.0 / Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Packing Dimension	Inch	L:125.99 x W：44.10 x H：43.31 1 Inch=25.4 mm
	Meter	L: 3.2m x W: 1.12m x H: 1.1m
Printer Dimension	Inch	L: 114.18 x W：39.38 x H: 66.93 1 Inch=25.4 mm
	Meter	L: 2.9m x W：1m x H: 1.7m
Weight	G.W	1078 lb. 490 kg 1kg=2.2 lb.
	N.W	880 lb. 400 kg 1kg=2.2 lb.
Environment	Power On	Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation)
	Power Off	Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation)
Safety Certification	CE Certified

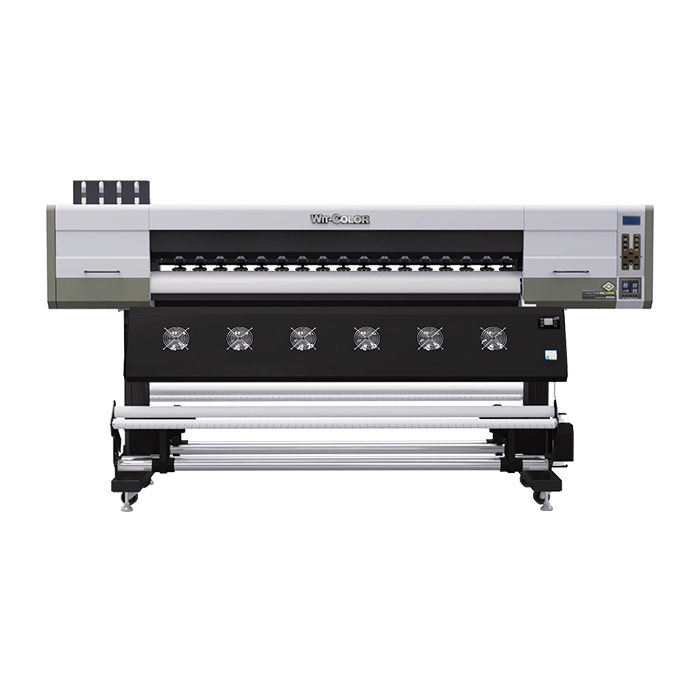

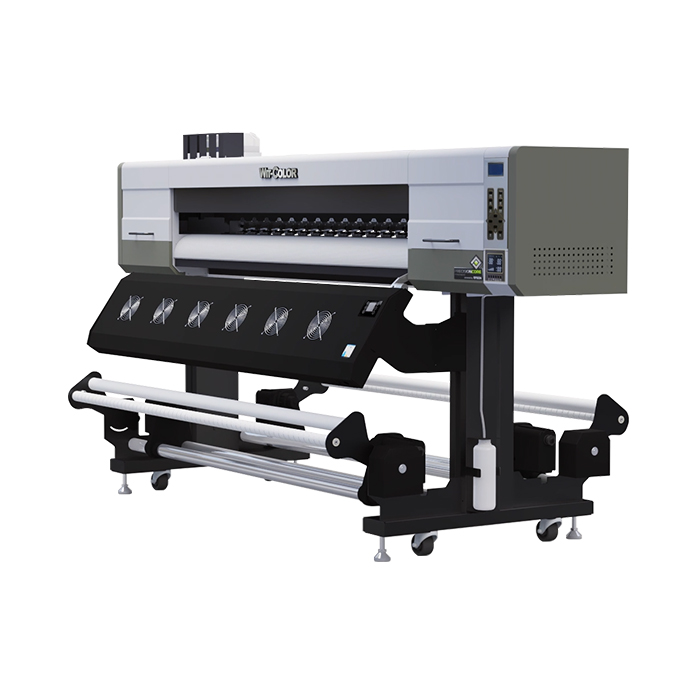

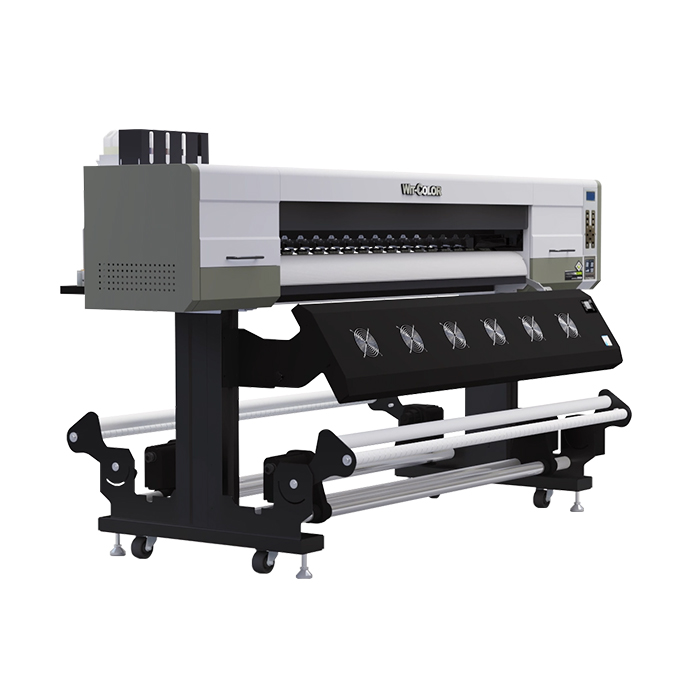

Wit-Color NEW Design Transfer Paper printer Ulltra i3200 1702TP
