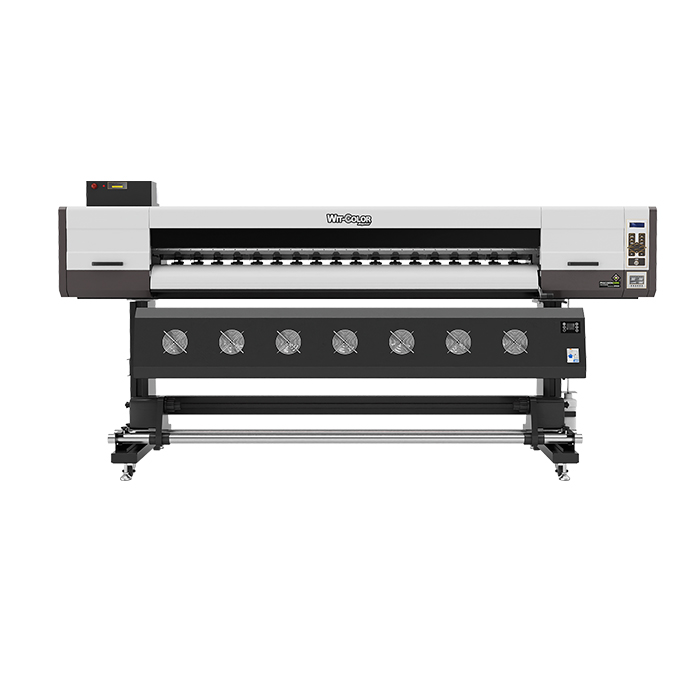

Printer Ultra i3200 1902S

Previous : Printer Ultra i3200 2402

Next : Printer Ultra i3200 3302/4

PRODUCTS

All Series: Latest Printers; Solvent Series Printers; UV Series Printers; Eco-solvent Series Printers; Consumables

Hot News: Ultra i3200 1706S Linear Motor Eco-Solvent Printer – Built for Throughput & Precision; Wit-Color 2026 signchina; Innovation Ignites the Future of Printing!; WIT-COLOR-GEN5 Printhead & UV Printer; WIT-COLOR-Why prices rising

Model	Ultra i3200 1901/2
Printing Technology	Eco-solvent Printing
Print Head	EPSON i3200
Acceptable Media	Type	Outdoor Eco-solvent Based Roll Media(Flex, Vinly, Backlit materials, PP, etc.)
	Width	≦1800mm
Ink Type	CMYK Eco-solvent Ink
Ink Supply	Siphon ink supply
Ink Cartridges	Capacity	Color Siphon
	Color	CMYK
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Maintop(standard) Photoprint/ Print Factory(optional)
Printing Resolution	Maximum
Speed	Mode	1H	2H
	3 Pass	32㎡/h	64㎡/h
	4 Pass	24㎡/h	48㎡/h
	6Pass	16㎡/h	32㎡/h
Ink Drying Method	Infrared Heater Drying
Control System	Win10
Power	4200W
Interface	USB3.0 / Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Packing Dimension	Inch	L:122.05 x W：27.56 x H: 43.31 1 Inch=25.4 mm
	Meter	L：3.1m x W：0.7m x H: 1.1m
Printer Dimension	Inch	L：114.17 x W：35.44 x H: 59.06 1 Inch=25.4 mm
	Meter	L:2.9m x W：0.92m x H: 1.41m
Weight	G.W	748 lb. 340 kg 1kg=2.2 lb.
	N.W	638 lb. 290 kg 1kg=2.2 lb.
Environment	Power On	Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation)
	Power Off	Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation)
Safety Certification	CE Certified
