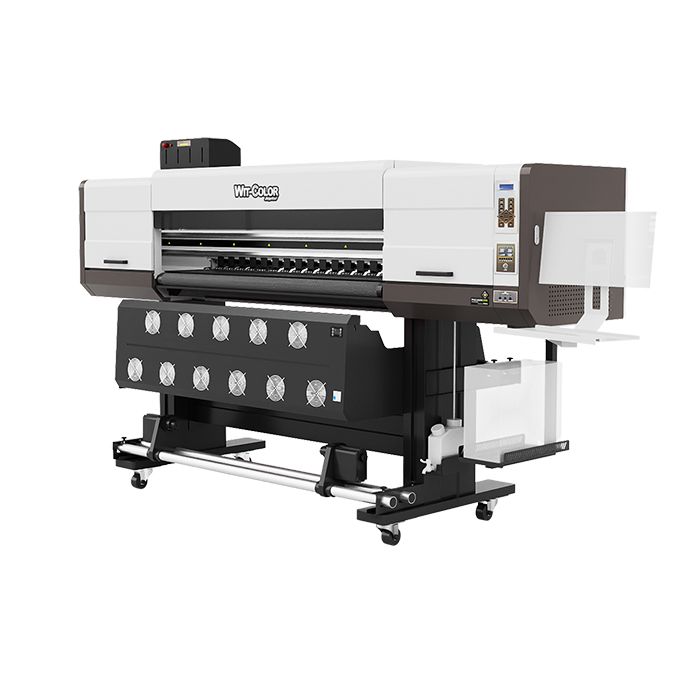

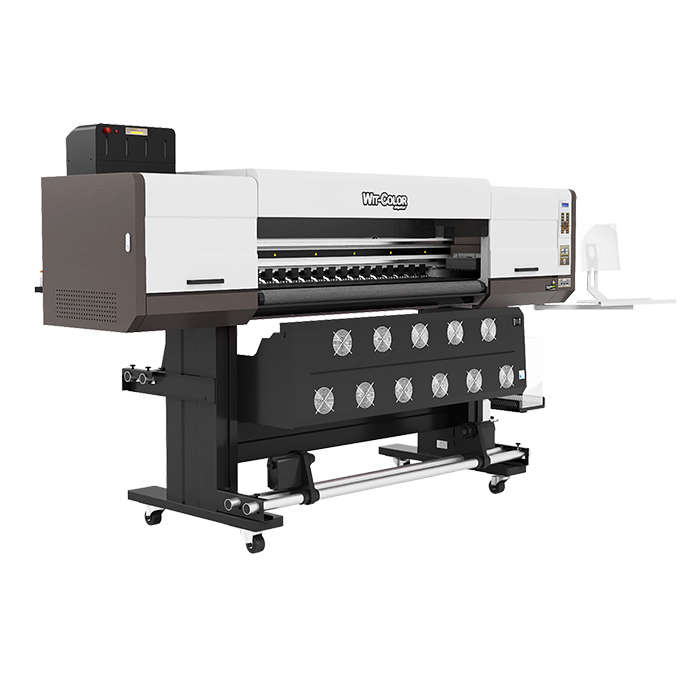

Printer Ultra i3200 1706S

Previous : Printer Ultra i3200 3308

Next : Printer Ultra i3200 6816

PRODUCTS

All Series: Latest Printers; Solvent Series Printers; UV Series Printers; Eco-solvent Series Printers; Consumables

Hot News: Ultra i3200 1706S Linear Motor Eco-Solvent Printer – Built for Throughput & Precision; Wit-Color 2026 signchina; Innovation Ignites the Future of Printing!; WIT-COLOR-GEN5 Printhead & UV Printer; WIT-COLOR-Why prices rising

Model	Ultra i3200 1706
Printing Technology	Eco-solvent Printing
Print Head	EPSON i3200
Acceptable Media	Type	Outdoor Eco-solvent Based Roll Media(Flex,Vinly,Backlit materials,PP, etc.)
	Width	≦1620mm
Ink Type	CMYK Eco-solvent Ink
Ink Supply	Siphon ink supply
Ink Cartridges	Capacity	Color Siphon
	Color	CMYK
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Maintop(standard) Photoprint/ Print Factory(optional)
Printing Resolution	Maximum
Speed	Mode	6H
	2 Pass	238㎡/h
	3 Pass	168㎡/h
	4Pass	125㎡/h
Ink Drying Method	Infrared Heater Drying
Control System	Win10
Power	6100W
Interface	USB3.0 / Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Packing Dimension	Inch	L:129.92x W：44.10 x H：43.31 1 Inch=25.4 mm
	Meter	L：3.3m x W：1.12m x H：1.1m
Printer Dimension	Inch	L：153.54 x W: 41.34 x H: 68.90 1 Inch=25.4 mm
	Meter	L:3.9m x W: 1.05m x H: 1.75m
Weight	G.W	1078 lb. 490 kg 1kg=2.2 lb.
	N.W	880 lb. 400 kg 1kg=2.2 lb.
Environment	Power On	Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity: 35 to 80% (No Condensation)
	Power Off	Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity: 35 to 80% (No Condensation)
Safety Certification	CE Certified
