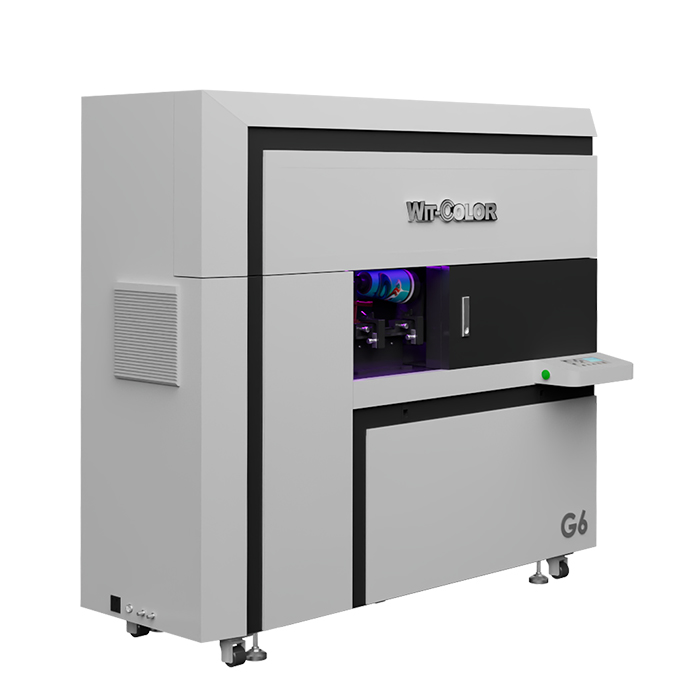

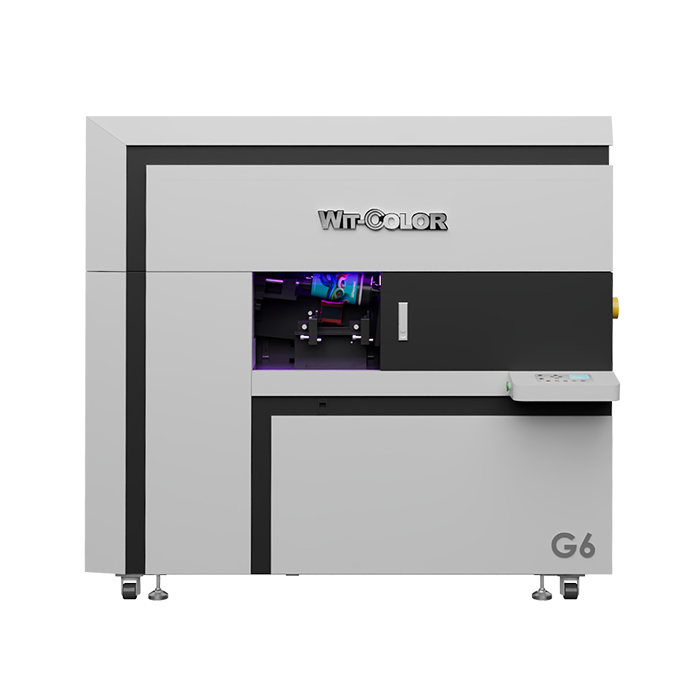

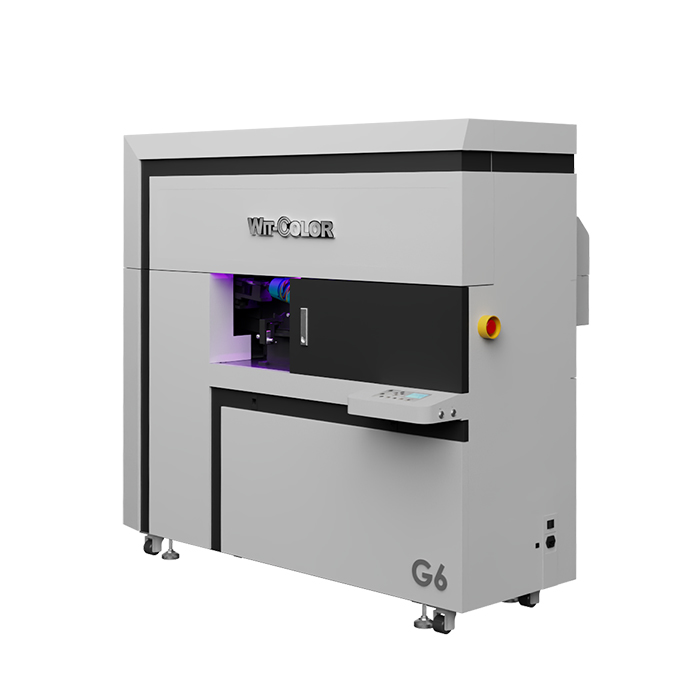

PRINTER ULTRA ROTARY RG6

Model Name:
PRINTER ULTRA ROTARY RG6
Product Description
Wit-Color UV rotary printers are among the best and newest in the industry to imprint cylindrical and tapered flat-walled objects, such as drinkware. The ability to produce a multicolor imprint that wraps objects seamlessly and in a short process time is emerging technology and we are among the first to bring this capability to market.

Real Cylinder / Taper 3D UV printer, 360° Full coverage, operation is clear and easy , 1440dpi high precision printing, all kinds of cylinder, taper, flexible adaptation, intelligent and efficient.This printer can print different effects to meet different needs of various industries.

Previous : PRINTER ULTRA ROTARY G5i

PRODUCTS

All Series: Latest Printers; Solvent Series Printers; UV Series Printers; Eco-solvent Series Printers; Consumables

Hot News: Ultra i3200 1706S Linear Motor Eco-Solvent Printer – Built for Throughput & Precision; Wit-Color 2026 signchina; Innovation Ignites the Future of Printing!; WIT-COLOR-GEN5 Printhead & UV Printer; WIT-COLOR-Why prices rising

Printer Model	PRINTER ULTRA ROTARY RG6
Printhead	Ricoh Gen6Printheads
PH Dot Jetting Distance	2-3 mm
Print Speed:	30s -3min /pcs
Printing Mode	CMYK+W+V
Resolution	720900dpi/7201200dpi
Ink	UV
Taper Printing Range	<5°
Printed Objects	Taper/Cylinder
Object Size	Print Length:80-280mm
	Print Diameter:φ45-160mm
	High Droplet Printing：2-13mm
RIP	RIIN
Ink Bottle	500 ml/Bottle
Height Measurement Function(modeling of speial-shaped products)	Optional
Printing Material Sensor	Optical Fiber Amplifier
Media Type	White/Black/Colored Tapers/Cylinders/Metal/Paper/Plastic/Wood etc.
Ink Supply System	Auto-Ink Supply System
Taper Electric Adjustment Function	yes
Image Format	Tiff, Jpg, Eps, Pdf, Png, Ai.
Data Interface	Network Cable
Environment	Tem. 20-28℃ Hum. 35-65%
Printer Size	LXWXH:1.56x1.0x1.5m
Packing Size	LXWXH:2.2x1.17x1.74m
N.W./G.W.	410/ 500KG
Power Requirement
Power Supply	AC 220V±10% 50/60 HZ
Power Consumption	1500 w
UV System	LED-UV Water Cooling
