Model Name:
UVIP KM 6813
Product Description

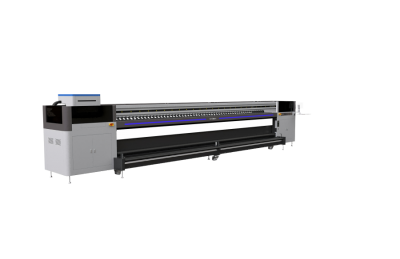

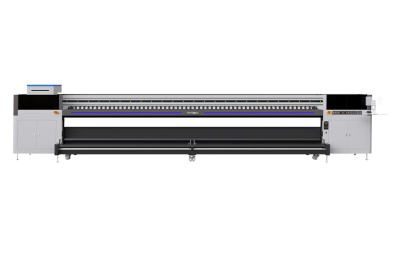

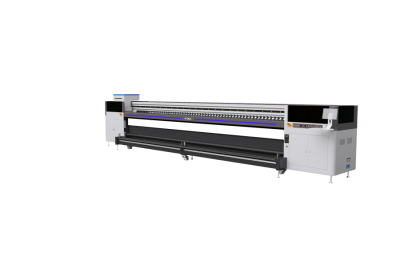

Wit-Color UV printer UVIP KM 6800

For All Advertising Images Use with High Resolution

1. Konica 1024a Print head

2.Max Printing Width 6.6m

3. One roll 6.2m banner, or two rolls 3.2m banners.

3.High Quality ! High Resolution! Better Performance!

Previous : UVIP KM 5518

Overview
Features
Specification
Printing Video

Model UVIP KM 6800 Printing Technology UV Printing Print Head Ricoh /Kyocera/Konica Acceptable Media Type Back-lit flex, Soft film, Wall cloth,Wall paper,PP，Vinly etc. Width One Roll ≦6200mm    Two Rolls ≦3200mm Thickness ≦3mm Weight Ink Type UV Ink  ：CMYK LCLM W V Ink Supply Negative Pressure Ink Supply Ink Cartridges Capacity Color Siphon+White ink auto-stirring Color CMYK+LC、LM+W+Varnish Image Format Tiff, JPEG, EPS, PDF RIP Software Photoprint(Standard) PrintFactory/Onyx /Caldera(optional) Printing Resolution Maximum Speed Mode In-line Staggered Triple Rows Quadruple Rows Gen6 Production Mode 40㎡/h 75㎡/h 110㎡/h 150㎡/h Standard Mode 30㎡/h 60㎡/h 90㎡/h 120㎡/h High Resolution Mode 20㎡/h 40㎡/h 60㎡/h 80㎡/h Kyocera Production Mode 70㎡/h 140㎡/h N/A N/A Standard Mode 50㎡/h 100㎡/h N/A N/A High Resolution Mode 25㎡/h 50㎡/h N/A N/A Konica Production Mode N/A 65㎡/h 100㎡/h N/A Standard Mode N/A 55㎡/h 85㎡/h N/A High Resolution Mode N/A 40㎡/h 60㎡/h N/A Ink Curing Method Dual UV LED Lights Control System Win10 Power 8000W Interface Gigabit Ethernet Power Supply AC 220V±10%, 50/60 HZ UPS 3KVA Air Source N/A Packing Dimension Inch L:381.89 x W:82.68 x H:88.58 1 Inch=25.4 mm Meter L:9.7m x W:2.1m x H:2.25m Printer Dimension Inch L:374.02 x W:70.86 x H:80.71            1 Inch=25.4 mm Meter L：9.5 x W：1.8m x H:2.05m Weight N.W 2772.73 lb. 6100kg 1kg =2.2 lb. G.W 3090.91 lb.   6800kg   1kg =2.2 lb. Environment Power On Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation) Power Off Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation) Safety Certification CE Certified ✱About 10% speed may vary from different feather printing mode and different PC configurations. All data are subject to change without prior notice.

PRODUCTS

LED UV Flatbed Printer

LED UV R2R Printer

LED UV Hybrid Printer

LED UV i3200 UV Printer

All Series: Latest Printers; Solvent Series Printers; UV Series Printers; Eco-solvent Series Printers; Consumables

Hot News: Ultra i3200 1706S Linear Motor Eco-Solvent Printer – Built for Throughput & Precision; Wit-Color 2026 signchina; Innovation Ignites the Future of Printing!; WIT-COLOR-GEN5 Printhead & UV Printer; WIT-COLOR-Why prices rising

Search

International: English

Wit-Color UV printer UVIP KM 6800

Model	UVIP KM 6800
Printing Technology	UV Printing
Print Head	Ricoh /Kyocera/Konica
Acceptable Media	Type	Back-lit flex, Soft film, Wall cloth,Wall paper,PP，Vinly etc.
	Width	One Roll ≦6200mm Two Rolls ≦3200mm
	Thickness	≦3mm
	Weight
Ink Type	UV Ink ：CMYK LCLM W V
Ink Supply	Negative Pressure Ink Supply
Ink Cartridges	Capacity	Color Siphon+White ink auto-stirring
	Color	CMYK+LC、LM+W+Varnish
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Photoprint(Standard) PrintFactory/Onyx /Caldera(optional)
Printing Resolution	Maximum
Speed	Mode		In-line	Staggered	Triple Rows	Quadruple Rows
	Gen6	Production Mode	40㎡/h	75㎡/h	110㎡/h	150㎡/h
		Standard Mode	30㎡/h	60㎡/h	90㎡/h	120㎡/h
		High Resolution Mode	20㎡/h	40㎡/h	60㎡/h	80㎡/h
	Kyocera	Production Mode	70㎡/h	140㎡/h	N/A	N/A
		Standard Mode	50㎡/h	100㎡/h	N/A	N/A
		High Resolution Mode	25㎡/h	50㎡/h	N/A	N/A
	Konica	Production Mode	N/A	65㎡/h	100㎡/h	N/A
		Standard Mode	N/A	55㎡/h	85㎡/h	N/A
		High Resolution Mode	N/A	40㎡/h	60㎡/h	N/A
Ink Curing Method	Dual UV LED Lights
Control System	Win10
Power	8000W
Interface	Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Air Source	N/A
Packing Dimension	Inch	L:381.89 x W:82.68 x H:88.58 1 Inch=25.4 mm
	Meter	L:9.7m x W:2.1m x H:2.25m
Printer Dimension	Inch	L:374.02 x W:70.86 x H:80.71 1 Inch=25.4 mm
	Meter	L：9.5 x W：1.8m x H:2.05m
Weight	N.W 2772.73 lb. 6100kg 1kg =2.2 lb. G.W 3090.91 lb. 6800kg 1kg =2.2 lb.
Environment	Power On	Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation)
	Power Off	Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation)
Safety Certification	CE Certified
