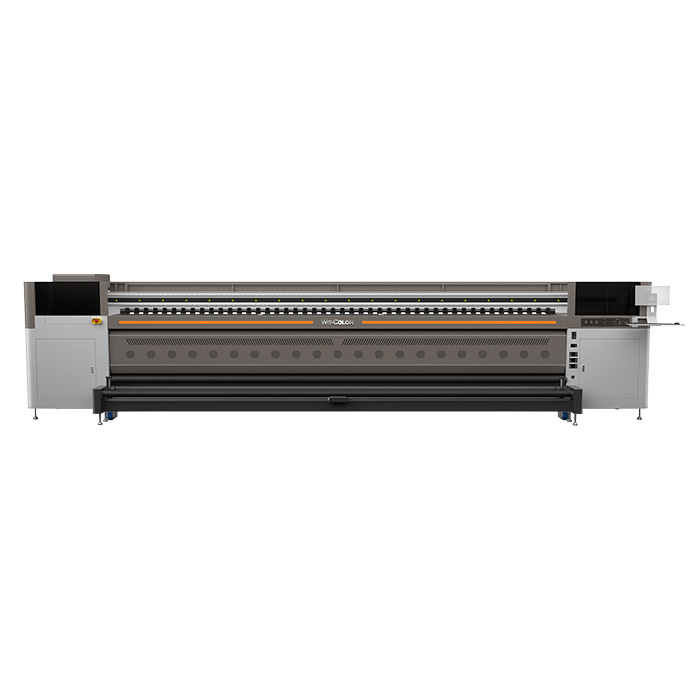

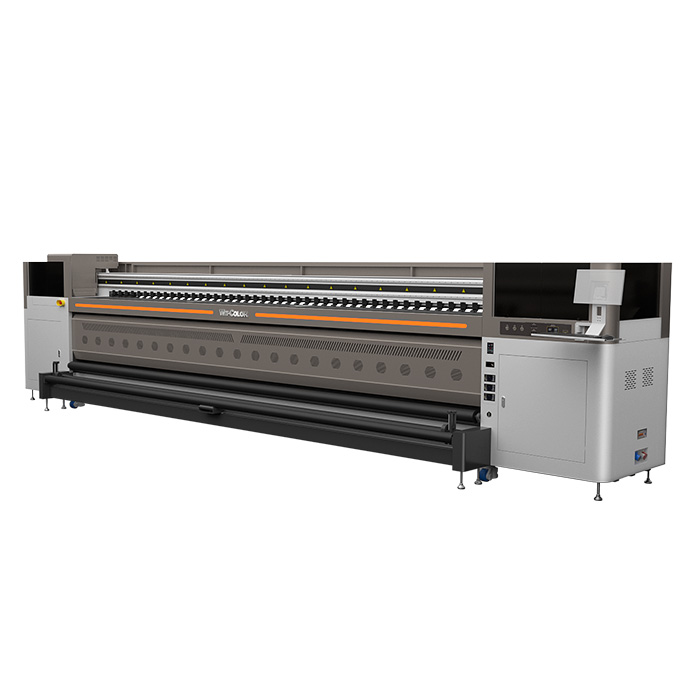

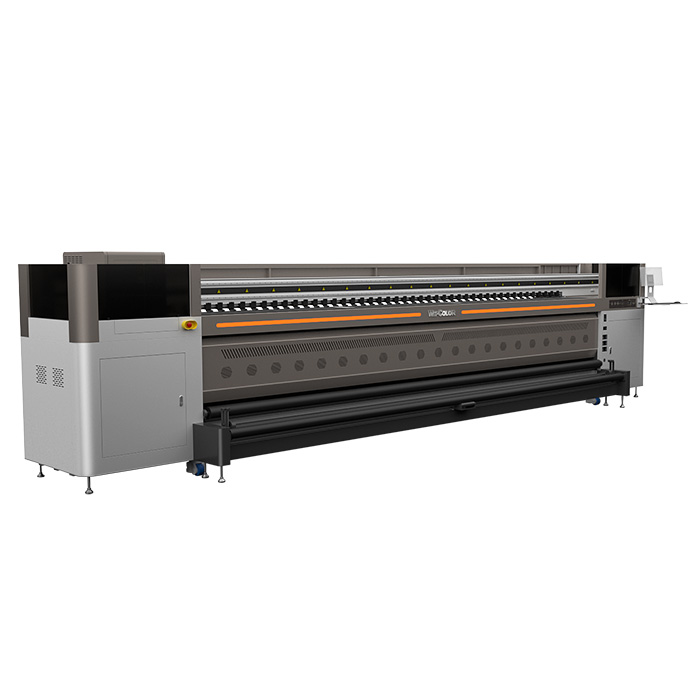

Printer Ultra Star 5304/6

Home » Products » Solvent Printer » StarFire Series

Model Name:
Printer Ultra Star 5304/6
Product Description
5.3m Solvent Printer

Printheads: StarFire 1024

Maximum Speed: 380 ㎡/h

Printing Width: 5.2m

Previous : Printer Ultra Star 3302/4/6

Overview
Features
Specification
Printing Video

WIT-COLOR NEW DESIGN 5.3M Large Format Solvent Adopted Spectra StarFire-1024 Industrial Printhead Drop Volume 25pl Maximum Speed of 380 ㎡/h 5.2m Printing Width 1.Fast Speed : 4or 6pcs star fire printhead optional. 2pass speed 330sqm/h. 2.User-friendly, easy to operate. 3.Anti -Wrinkle roller to keep smooth printing. 4.Feeding system upgrade, no wrinkle. 5.Newest ink supply system.

PRODUCTS

StarFire Series

All Series: Latest Printers; Solvent Series Printers; UV Series Printers; Eco-solvent Series Printers; Consumables

Hot News: Ultra i3200 1706S Linear Motor Eco-Solvent Printer – Built for Throughput & Precision; Wit-Color 2026 signchina; Innovation Ignites the Future of Printing!; WIT-COLOR-GEN5 Printhead & UV Printer; WIT-COLOR-Why prices rising

Model	Ultra Star 5306
Printing Technology	Solvent Printing
Print Head	Star Fire 1024 25PL、Konica1024i 4/8/12H
Acceptable Media	Type		Outdoor Solvent/Eco-solvent Based Roll Media(Flex,Vinly,Backlit materials,PP, etc.)
	Width		≦5200mm
Ink Type	CMYK 25PL Solvent Ink
Ink Supply	Negative Pressure Ink Supply
Ink Cartridges	Capacity		Color Siphon
	Color		CMYK
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Maintop(standard) Photoprint/ Print Factory(optional)
Printing Resolution	Maximum
Speed	Star Fire	Mode	2H	4H	6H
		2PASS	110㎡/h	240㎡/h	310㎡/h
		3PASS	80㎡/h	170㎡/h	220㎡/h
		4PASS	60㎡/h	120㎡/h	150㎡/h
	Konica	Mode	4H	8H	12H
		2PASS	240㎡/h	480㎡/h	720㎡/h
		3PASS	130㎡/h	260㎡/h	380㎡/h
		4PASS	80㎡/h	174㎡/h	240㎡/h
Ink Drying Method	Infrared Heater Drying
Control System	Win10
Power	11000W
Interface	Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Packing Dimension	Inch		L:298.43 x W: 61.03 x H: 82.68 1 Inch=25.4 mm
			L:232.68 x W: 17.72 x H：25.60 1 Inch=25.4 mm
	Meter		L：7.58m x W: 1.55m x H：2.1m
			Individual Media Feeding Roll:L：5.91m x W: 0.45m x H：0.65m
Printer Dimension	Inch		L:287.41 x W: 53.15 x H: 67.32 1 Inch=25.4 mm
			L:228.35 x W: 13.78 x H: 23.23 1 Inch=25.5 mm
	Meter		L: 7.3m x W: 13.5m x H: 1.71m
			Individual Media Feeding Roll:L: 5.8m x W: 0.35m x H: 0.59m
Weight		N.W 8338 lb. 3790kg 1kg =2.2 lb. G.W 9735 lb. 4425kg 1kg =2.2 lb.
Environment	Power On		Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation)
	Power Off		Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation)
Safety Certification	CE Certified
