RH 1902 / 1904 / 1906

Model Name:
RH 1902 / 1904 / 1906
Product Description

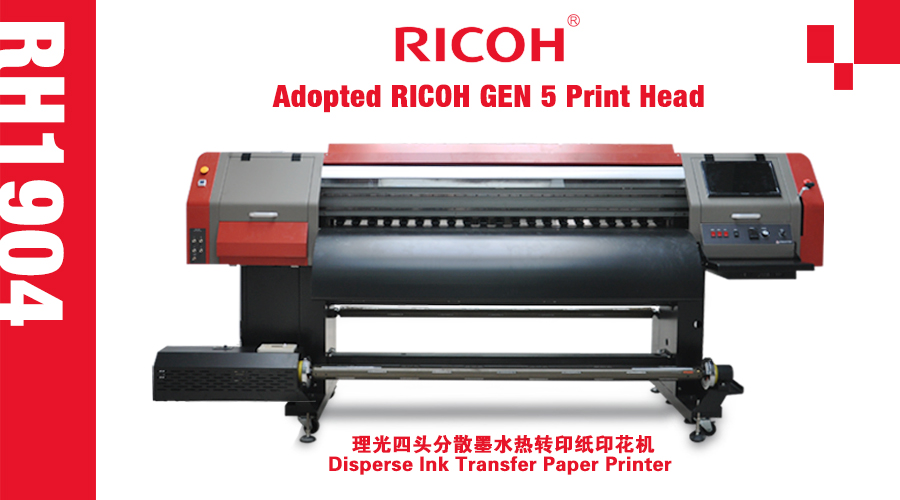

Textile trasnfer paper printer RH 1902 / 1904 / 1906. Adopted 2 or 4 or 6 Ricoh Gen5 print heads. The maximum printing width is 1.8m. And it used dieperse ink

Transfer Paper Printer
Printer Model	RH 1902 / 1904 /1906
Print head	P.H. Model	RICOH GEN5
P.H. Height	Adjustable
Printing Width	1.8m
Printing Speed	Resolution Mode	Printing Speed
2heads	4heads	6heads
2Pass	70㎡/h	140㎡/h	210㎡/h
3Pass	50㎡/h	100㎡/h	170㎡/h
4Pass	30㎡/h	60㎡/h	130㎡/h
Ink type	Disperse Ink
Ink Color	CMYK/LC/LM
Media	Media Width	1.8m
Media Processing	Roll to Roll + Auto Feeding + Auto Roll Up
Media Heating	Pre Heating & Dry Heating
Media Types	Transfer Paper
Image Format	TIFF, JPG, EPS, PDF
RIP Software	Maintop / Photoprint ( Optional )
Interface	RH 1904/6: USB2.0
Operating System	Windows XP / Win7 Workstation
Power Supply	AC220V 50HZ±10%, UPS is required
Power	2500W
PC Configuration	SYSTEM: Windows XP SP2 (English Version) / Windows 7 (Professional Version) CPU: Intel Dual Core i5 RAM: KST 4GB Hard Disk: WD 500G Hard Disk Format: NTFS VGA Card: SDC ATI 1G CD Rom: DVD Recordable
Temperature/Humidity	Temperature 20-30℃, Humidity 60-70%
Packing Size	L/W/H : 3.26mx1.48mx1.03m
G.W./N.W.	800kg /650kg
Remark: The data is subject to change without prior notice. The speed will be varied due to different PC settings.
