Printer UVIP 7335

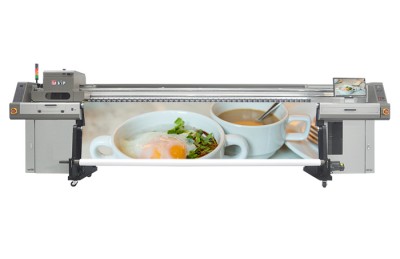

UVIP 7336 LED UV R2R Printer

Max. Printing Width:3.2M Width Rolling Materials

Printhead: Coming Equipped with the most UV ink suitable Ricoh Gen5 printheads. 3 pcs for 6 colors.

Printhead Features：

①　Totally 1280 Nozzles lying in 4 Rows, 320 Nozzles each, Nozzle width:about 54.00mm

②　Drop Volume: 4-7 PL

③　Printhead Physical Resolution: 600DPI

④　Fire frequency: 30K Hz

⑤　All steel industrial level and well withstanding Abrasion, Over 10 years super long using life.

Printer Features：

1. Special design for soft film printing

Nowadays more and more soft file is used in signs and advertisement, especially house floor decoration. The market has a huge demand of UV ink printed soft film. Well, UV flatbed printer and modified Solvent Ink printers can not meet the printing requirements, both in printing quantity and quality. But our this UVIP 4R3308 printer is specialized in printing soft film.

2. Cool light LED UV Lamps

The printer is equipped with imported LED lamps. This lamps are different from the traditional mercury lamps. Compared with each other, LED Lamp has 4 big advantages:

(1)Power conservation  (2) Less radiation.  (3) Cool light   (4) Longer Using Life

3. Integral High Configurations

①　Open style design, easy for operating and Convenience for daily maintenance.

②　Adjustable carriage height device ensures for thicker material printing.

③　Through this light box, operators can easily find the printing situation.

④　Dual Taiwan Hiwin Linear Rail

⑤　Imported Italy Megadyne

⑥　High Precision Industrial DELTA servo motors.

Application: Soft film, Back lit materials, Clothing, Car sticker, Advertisement material, etc.
