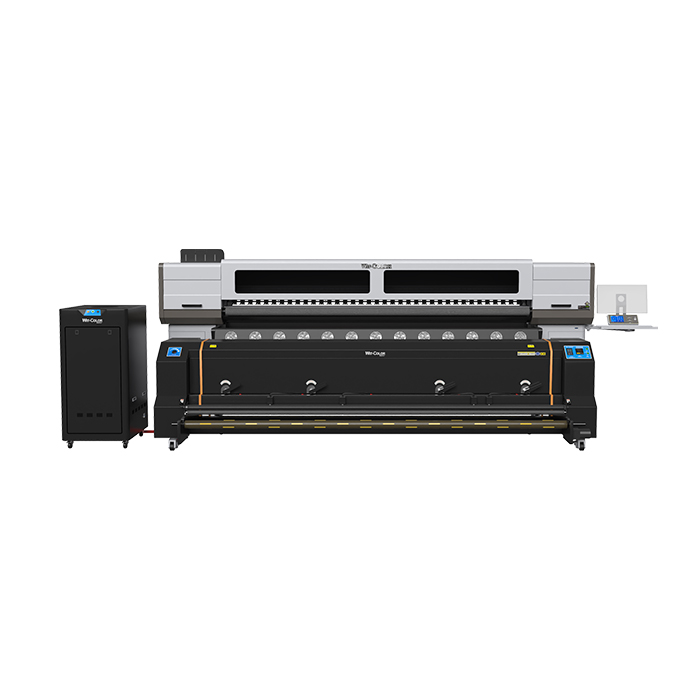

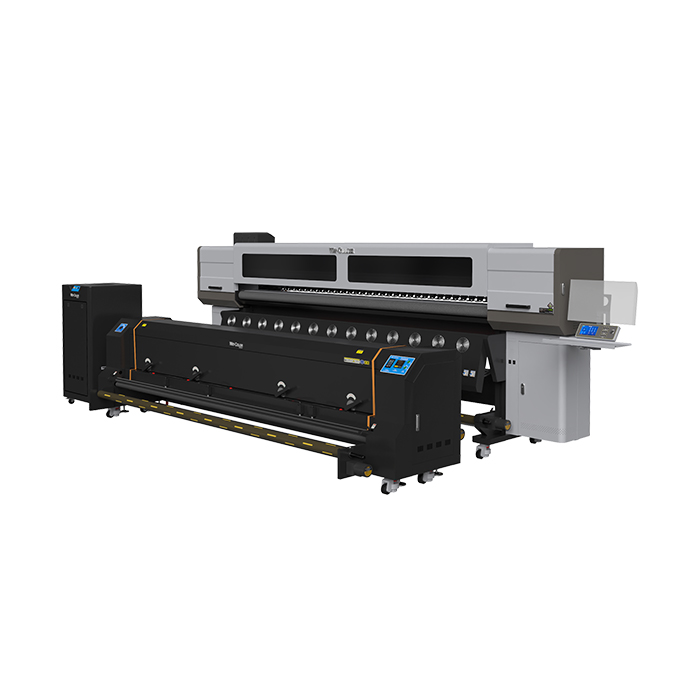

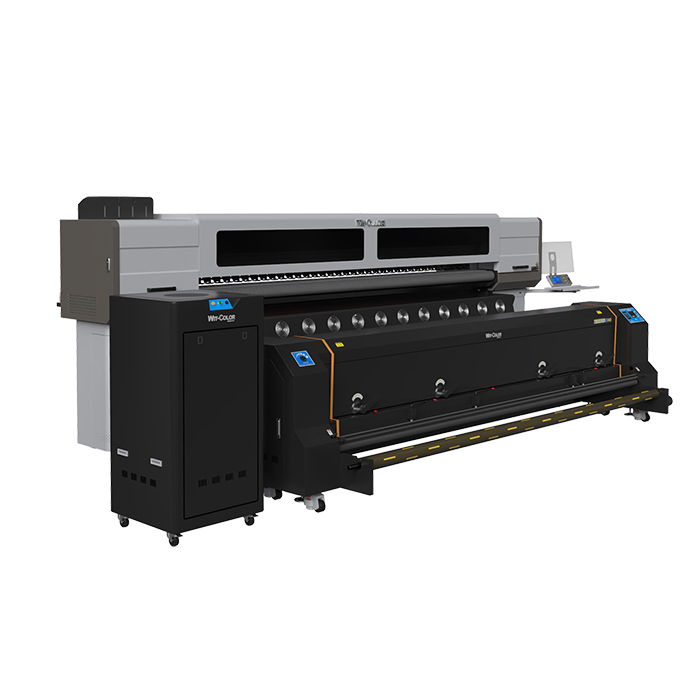

• Model Name:

    Ultra i3200 3304DS

  • Product Description
  • Printing Width: 3.2m

    Print Head: Epson i3200

    Print Head Quantity: 4pcs

    Inks: Sublimation

    RIP Software: PhotoPrint or Print Factory



Follow Us: Facebook Twitter LinkedIn Google+ Addthis

Previous : Ultra i3200 2104DS

Model Ultra i3200  3304 DS
Printing Technology Printing
Print Head EPSON i3200
Acceptable Media Type Polyester, Flag,Non-woven Fabric, etc.
Width ≦3200mm
Ink Type CMYK Sublimation Ink
Ink Supply Siphon ink supply
Ink Cartridges Capacity Color Siphon
Color CMYK
Image Format Tiff, JPEG, EPS, PDF
RIP Software Maintop(standard) Photoprint/ Print Factory(optional)
Printing Resolution Maximum
Speed Mode 2H 4H
3 Pass 68㎡/h 130㎡/h
4 Pass 50㎡/h 100㎡/h
6Pass 35㎡/h 70㎡/h
Ink Drying Method Infrared Heater Drying
Control System Win10
Power 10000W
Interface USB3.0 / Gigabit Ethernet
Power Supply AC 220V±10%, 50/60 HZ
UPS 3KVA
Packing Dimension Inch L:200.79 x W:48.43 x H :82.68       1 Inch=25.4 mm
Meter L:5.1m x W:1.23m x H:2.1m
Printer Dimension Inch L:188.98x W:51.18x H :74.80      1 Inch=25.4 mm
Meter L: 4.8m x W:1.3m x H:1.9m
Weight G.W 516.36 lb.    1136 kg    1kg=2.2 lb.
N.W 445.45  lb.    980 kg    1kg=2.2 lb.
Environment Power On Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation)
Power Off Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation)
Safety Certification CE Certified

✱About 10% speed may vary from different feather printing mode and different PC configurations. All data are subject to change without prior notice.
