Model	UV Ultra i3200 1902
Printing Technology	UV Printing
Print Head	EPSON i3200
Acceptable Media	Type	Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinly etc.
	Width	≦1820mm
Ink Type	UV Ink: CMYK LCLM W V
Ink Supply	Negative Pressure Ink Supply
Ink Cartridges	Capacity	Color Siphon+White ink auto-stirring
	Color	CMYK+W
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Maintop(standard) Photoprint/ Print Factory(optional)
Printing Resolution	Maximum
Speed	Mode	2H
	3 Pass	33㎡/h
	4 Pass	21㎡/h
	6Pass	11㎡/h
Ink Drying Method	UV Drying
Control System	Win10
Power	6100W
Interface	USB3.0 / Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Packing Dimension	Inch	L: 138.59xW:44.10x43.31 1 Inch=25.4 mm
	Meter	L: 3.52m x W：1.12m x H: 1.1m
Printer Dimension	Inch	L: 129.93 x W: 39.38 x H:70.87 1 Inch=25.4 mm
	Meter	L:3.3m x W: 1m x H：1.8m
Weight	G.W	1078 lb. 690 kg 1kg=2.2 lb.
	N.W	880 lb. 500 kg 1kg=2.2 lb.
Environment	Power On	Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity: 35 to 80% (No Condensation)
	Power Off	Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity: 35 to 80% (No Condensation)
Safety Certification	CE Certified

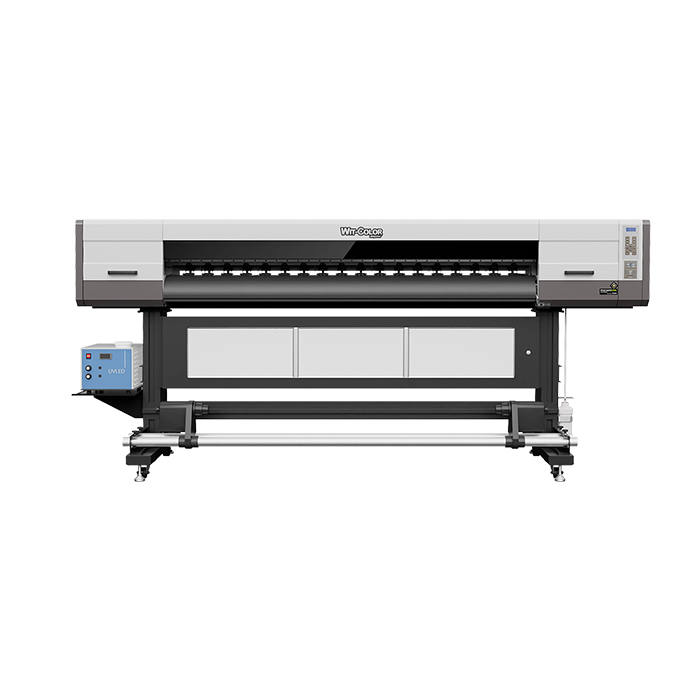

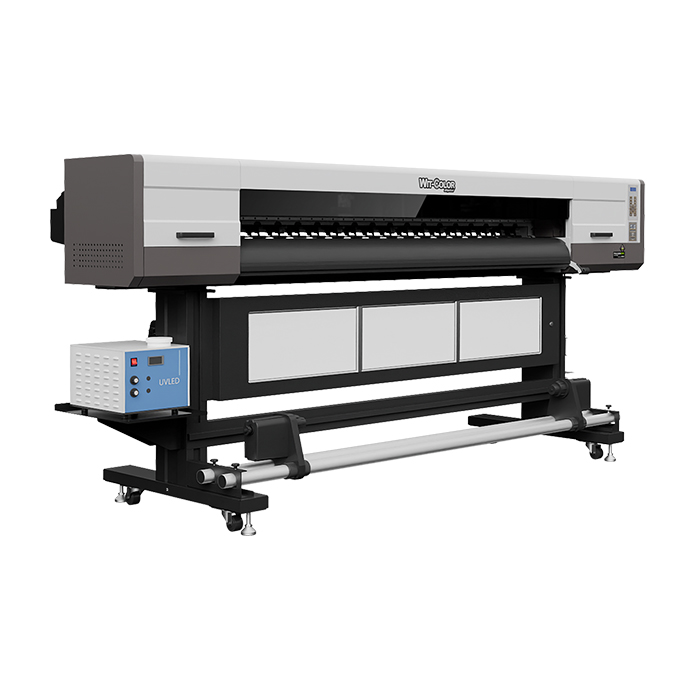

Wit-Color NEW Design UV printer Ulltra i3200 1902UV
