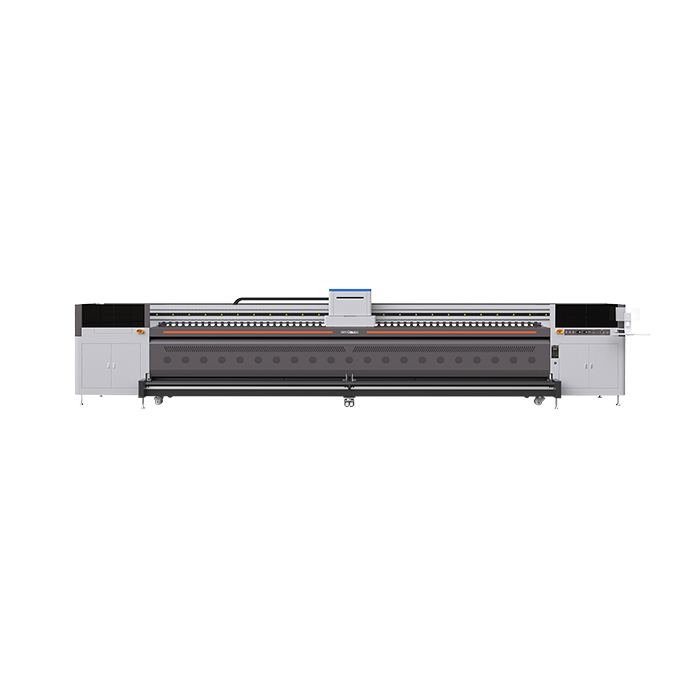

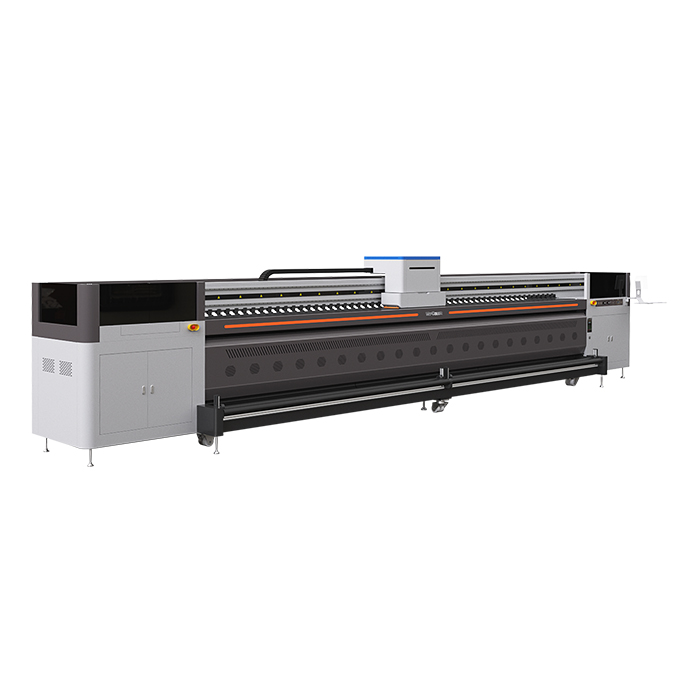

Model	Ultra i3200 6816
Printing Technology	Eco-Solvent Printing
Print Head	Epson i300 16H
Acceptable Media	Type		Outdoor Eco-solvent Based Roll Media(Flex,Vinly,Backlit materials,PP, etc.)
	Width		≦6600mm
Ink Type	CMYK Eco- Solvent Ink
Ink Supply	Negative Pressure Ink Supply
Ink Cartridges	Capacity		Color Siphon
	Color		CMYK
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Maintop(standard) Photoprint/ Print Factory(optional)
Printing Resolution	Maximum
Speed	Epson	Mode	16H
		2PASS	434㎡/h
		3PASS	303㎡/h
		4PASS	151㎡/h
	Ink Drying Method	Infrared Heater Drying
	Control System	Win10
	Power	11000W
	Interface	Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Packing Dimension	Inch		L:298.43 x W: 61.03 x H: 82.68 1 Inch=25.4 mm
			L:232.68 x W: 17.72 x H：25.60 1 Inch=25.4 mm
	Meter		L：7.58m x W: 1.55m x H：2.1m
			Individual Media Feeding Roll:L：5.91m x W: 0.45m x H：0.65m
Printer Dimension	Inch		L:287.41 x W: 53.15 x H: 67.32 1 Inch=25.4 mm
			L:228.35 x W: 13.78 x H: 23.23 1 Inch=25.5 mm
	Meter		L: 7.3m x W: 13.5m x H: 1.71m
			Individual Media Feeding Roll:L: 5.8m x W: 0.35m x H: 0.59m
Weight		N.W 8338 lb. 3790kg 1kg =2.2 lb. G.W 9735 lb. 4425kg 1kg =2.2 lb.
Environment	Power On		Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation)
	Power Off		Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation)
Safety Certification	CE Certified
