Model Name:

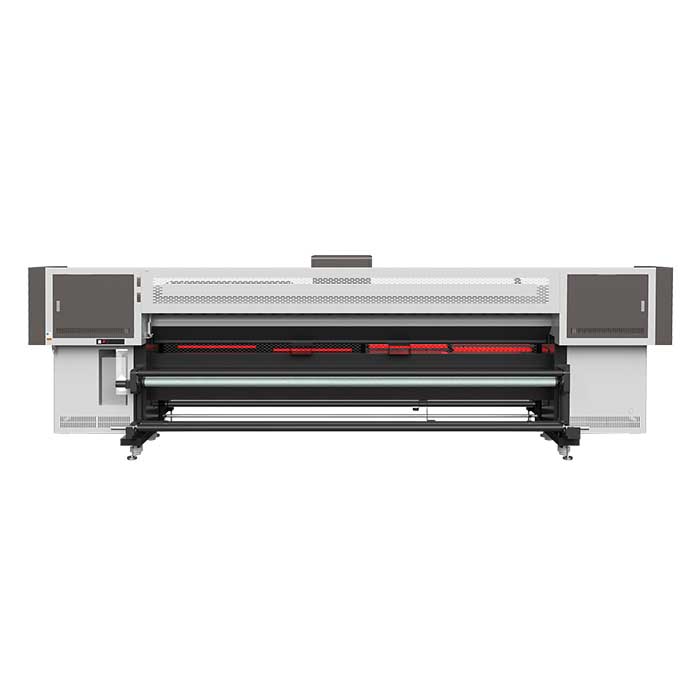

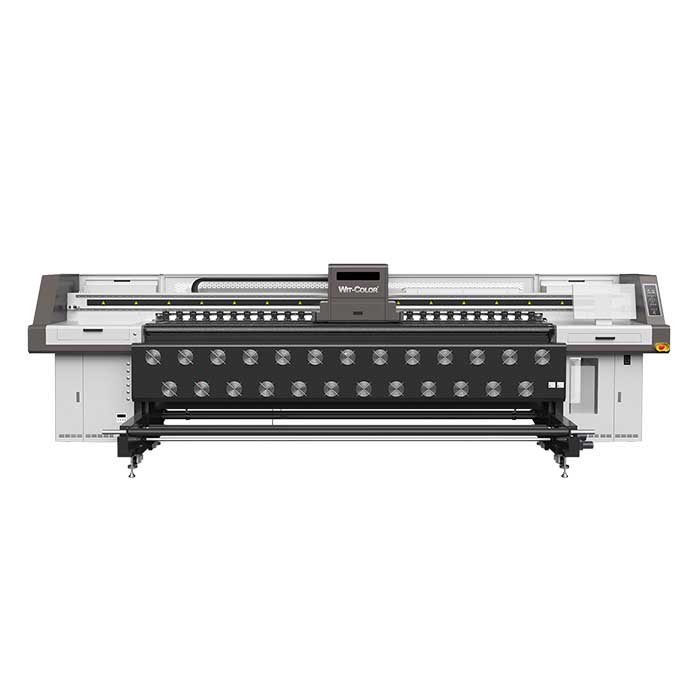

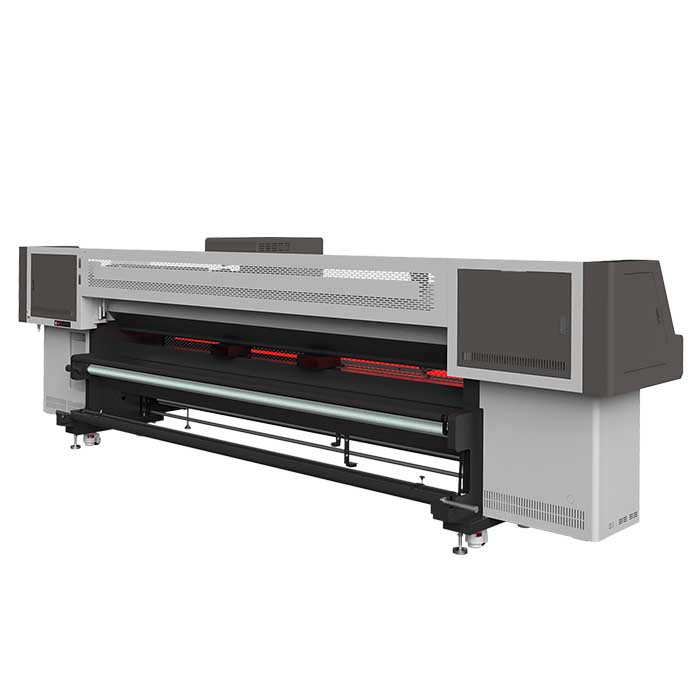

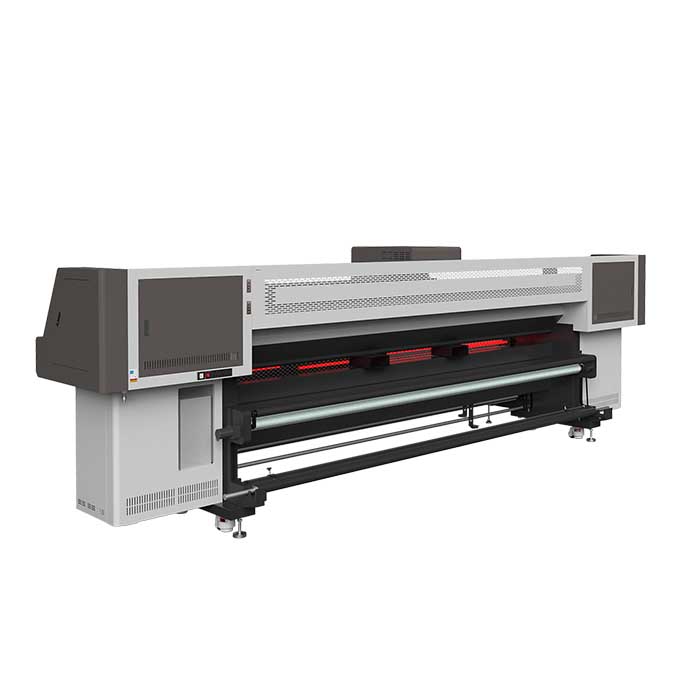

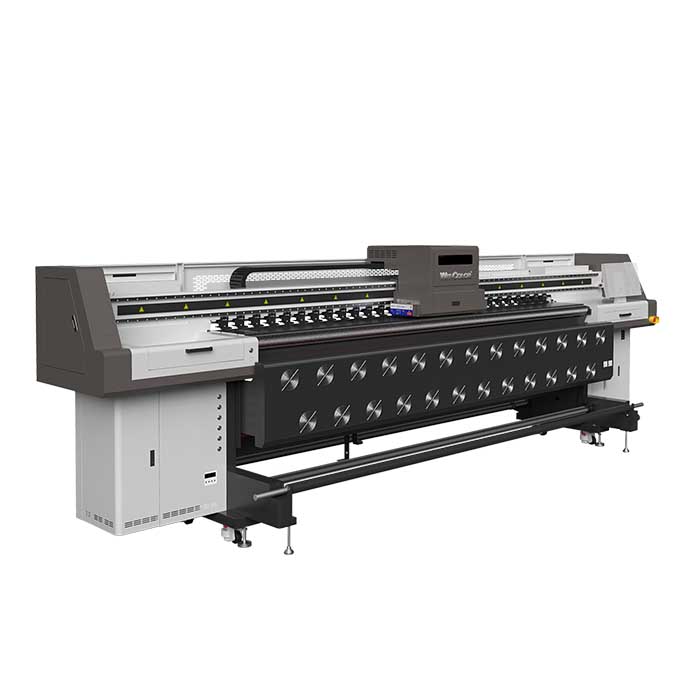

Printer Ultra Star 3302/4/6
Product Description
Over 10 Hours working time, No need special maintainence.

6heads 2pass: 330sqm/h (360*200dpi 25pl).

Carbon Fiber drying system.

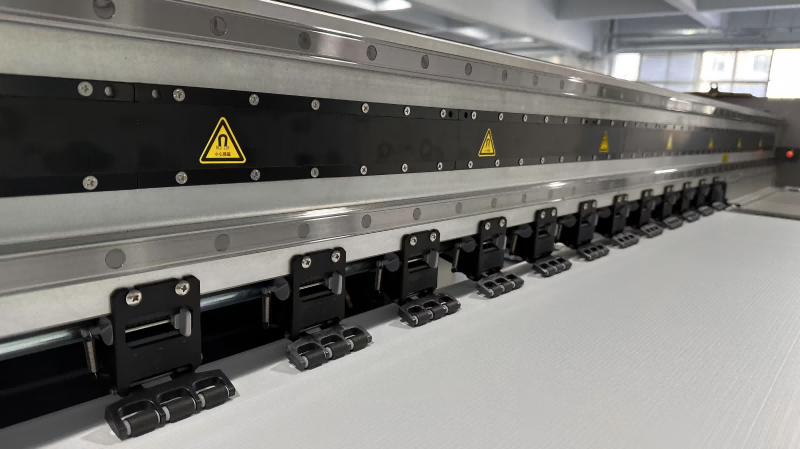

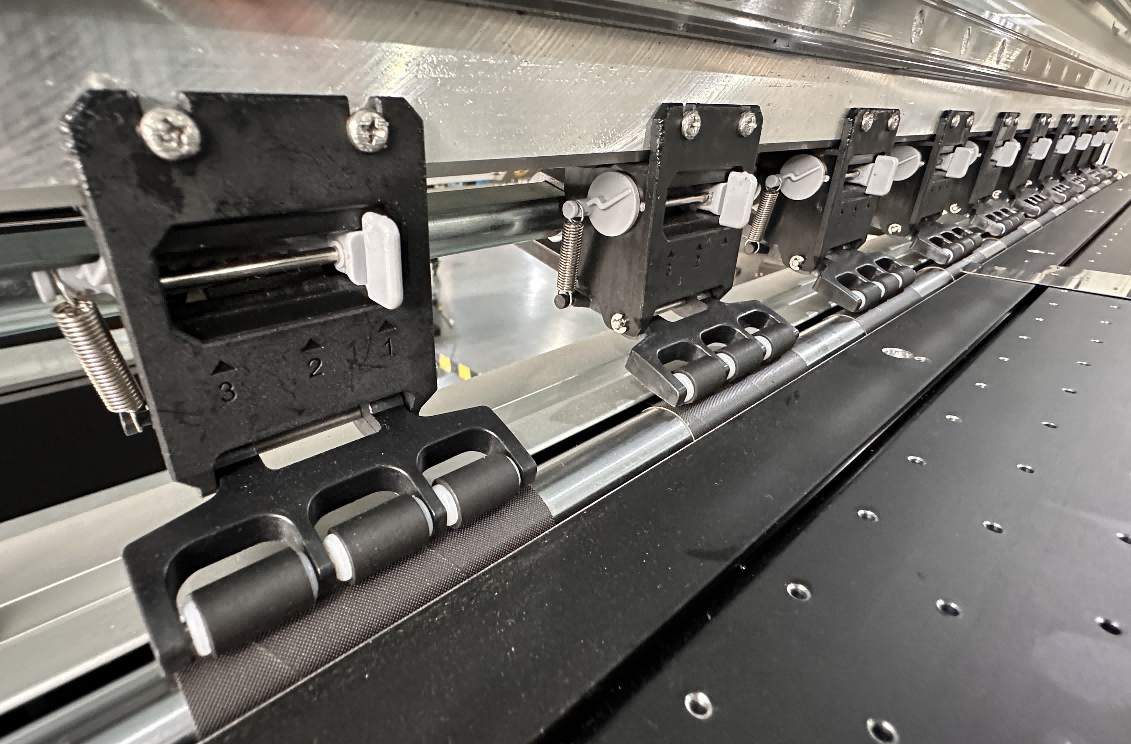

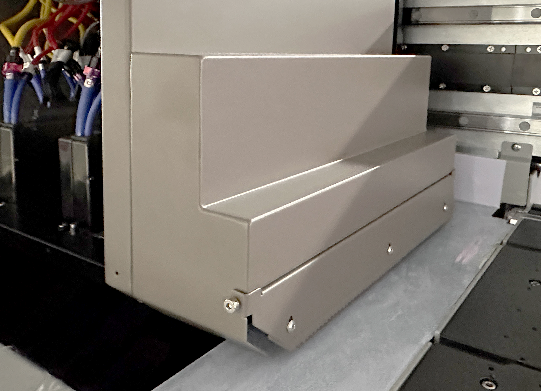

Anti-Crash System.

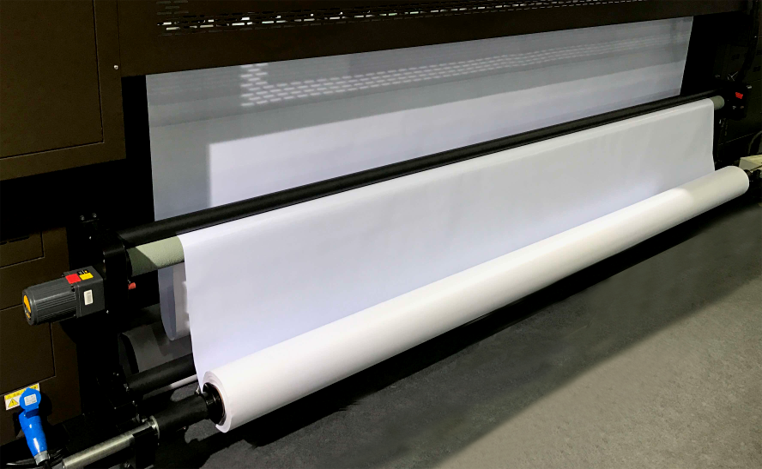

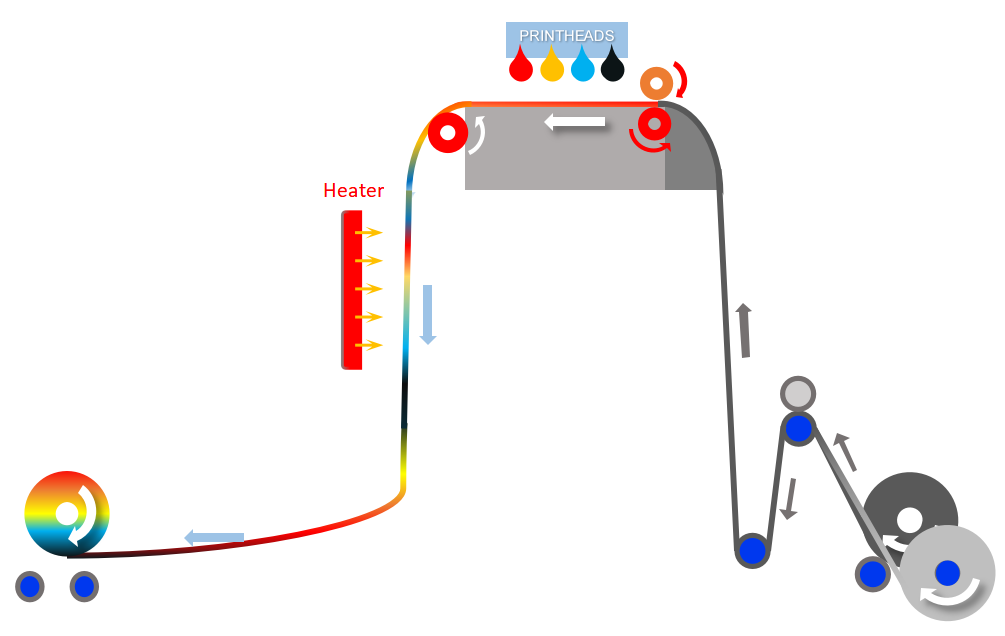

Mutil-Choice feeding system & Independent take-up system.

New Designed controlling system.

Previous : Printer Ultra Star 6806

Next : Printer Ultra Star 5304/6

Overview
Features
Specification
Printing Video

Model Ultra Star 3306 Printing Technology Solvent Printing Print Head Star Fire 1024 （10/25PL Optional)、Konica1024i 4/8/12H Acceptable Media Type Outdoor Solvent/Eco-solvent Based Roll Media(Flex,Vinly,Backlit materials,PP, etc.) Width ≦3200mm Ink Type CMYK 25PL Solvent Ink / 10PL Eco-Solvent Ink Supply Negative Pressure Ink Supply Ink Cartridges Capacity Color Siphon Color CMYK Image Format Tiff, JPEG, EPS, PDF RIP Software Maintop(standard) Photoprint/ Print Factory(optional) Printing Resolution Maximum Speed Star Fire Mode 2H 4H 6H 2PASS 110㎡/h 240㎡/h 310㎡/h 3PASS 80㎡/h 170㎡/h 220㎡/h 4PASS 60㎡/h 120㎡/h 150㎡/h Konica Mode 4H 8H 12H 2PASS 240㎡/h 480㎡/h 720㎡/h 3PASS 130㎡/h 260㎡/h 380㎡/h 4PASS 80㎡/h 174㎡/h 240㎡/h Ink Drying Method Infrared Heater Drying Control System Win10 Power 8000W Interface Gigabit Ethernet Power Supply AC 220V±10%, 50/60 HZ UPS 3KVA Packing Dimension Inch L: 197.25 x W: 44.49 x H: 69.30           1 Inch=25.4 mm L: 157.48 x W: 17.72 x H: 27.17            1 Inch=25.5 mm Meter L: 5.01m x W: 1.13m x H: 1.76m Individual Media Feeding Roll: L: 4m x W: 0.45m x H: 0.69m Printer Dimension Inch L: 188.98 x W: 44.49 x H: 61.42            1 Inch=25.4 mm L: 149.61 x W: 13.78 x H: 23.23           1 Inch=25.4 mm Meter L: 4.8m x W: 1.13m x H: 1.56m Individual Media Feeding Roll: L: 3.8m x W: 0.35m x H: 0.59m Weight N.W 2090 lb. 950kg 1kg =2.2 lb. G.W 2398 lb. 1090kg   1kg =2.2 lb. Environment Power On Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation) Power Off Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation) Safety Certification CE Certified ✱About 10% speed may vary from different feather printing mode and different PC configurations. All data are subject to change without prior notice.

PRODUCTS

StarFire Series

All Series: Latest Printers; Solvent Series Printers; UV Series Printers; Eco-solvent Series Printers; Consumables

Hot News: Ultra i3200 1706S Linear Motor Eco-Solvent Printer – Built for Throughput & Precision; Wit-Color 2026 signchina; Innovation Ignites the Future of Printing!; WIT-COLOR-GEN5 Printhead & UV Printer; WIT-COLOR-Why prices rising

Search

International: English

Model	Ultra Star 3306
Printing Technology	Solvent Printing
Print Head	Star Fire 1024 （10/25PL Optional)、Konica1024i 4/8/12H
Acceptable Media	Type		Outdoor Solvent/Eco-solvent Based Roll Media(Flex,Vinly,Backlit materials,PP, etc.)
	Width		≦3200mm
Ink Type	CMYK 25PL Solvent Ink / 10PL Eco-Solvent
Ink Supply	Negative Pressure Ink Supply
Ink Cartridges	Capacity		Color Siphon
	Color		CMYK
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Maintop(standard) Photoprint/ Print Factory(optional)
Printing Resolution	Maximum
Speed	Star Fire	Mode	2H	4H	6H
		2PASS	110㎡/h	240㎡/h	310㎡/h
		3PASS	80㎡/h	170㎡/h	220㎡/h
		4PASS	60㎡/h	120㎡/h	150㎡/h
	Konica	Mode	4H	8H	12H
		2PASS	240㎡/h	480㎡/h	720㎡/h
		3PASS	130㎡/h	260㎡/h	380㎡/h
		4PASS	80㎡/h	174㎡/h	240㎡/h
Ink Drying Method	Infrared Heater Drying
Control System	Win10
Power	8000W
Interface	Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Packing Dimension	Inch		L: 197.25 x W: 44.49 x H: 69.30 1 Inch=25.4 mm
			L: 157.48 x W: 17.72 x H: 27.17 1 Inch=25.5 mm
	Meter		L: 5.01m x W: 1.13m x H: 1.76m
			Individual Media Feeding Roll: L: 4m x W: 0.45m x H: 0.69m
Printer Dimension	Inch		L: 188.98 x W: 44.49 x H: 61.42 1 Inch=25.4 mm
			L: 149.61 x W: 13.78 x H: 23.23 1 Inch=25.4 mm
	Meter		L: 4.8m x W: 1.13m x H: 1.56m
			Individual Media Feeding Roll: L: 3.8m x W: 0.35m x H: 0.59m
Weight		N.W 2090 lb. 950kg 1kg =2.2 lb. G.W 2398 lb. 1090kg 1kg =2.2 lb.
Environment	Power On		Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation)
	Power Off		Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation)
Safety Certification	CE Certified
