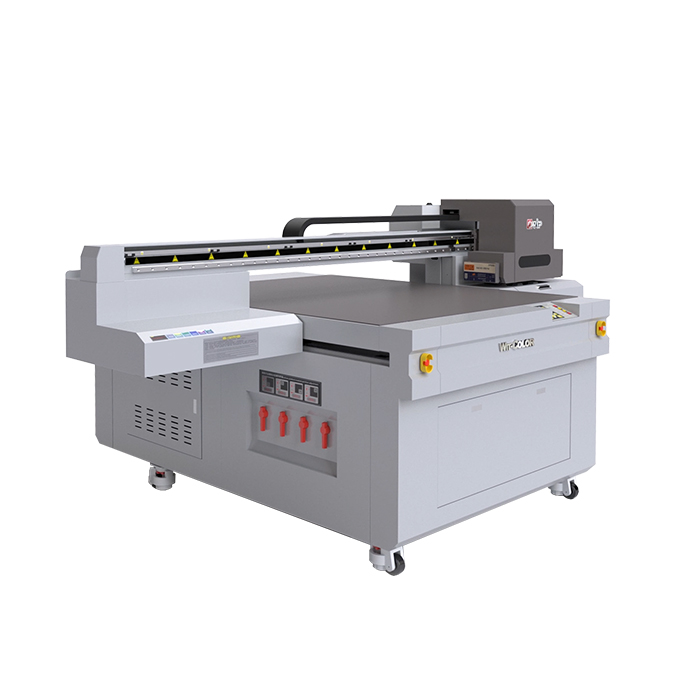

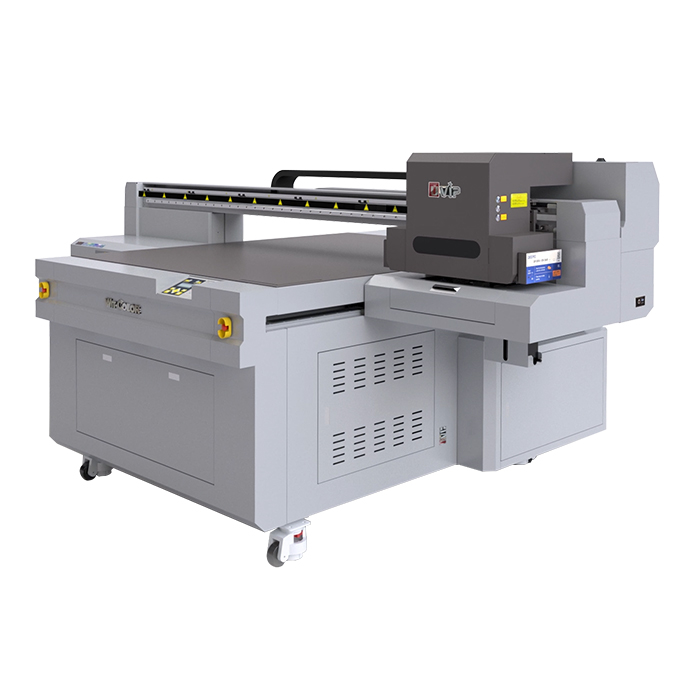

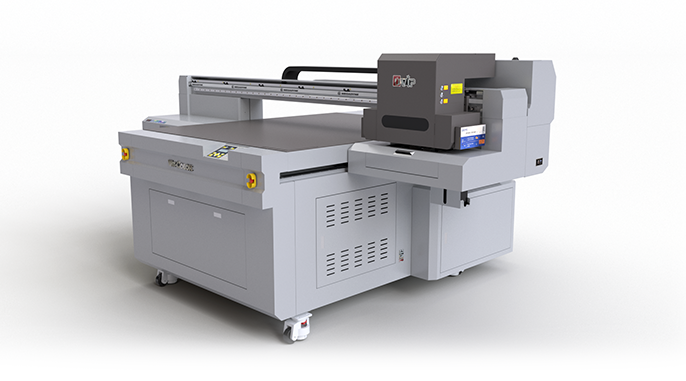

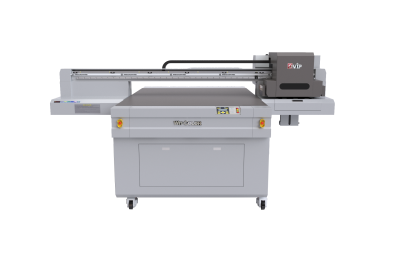

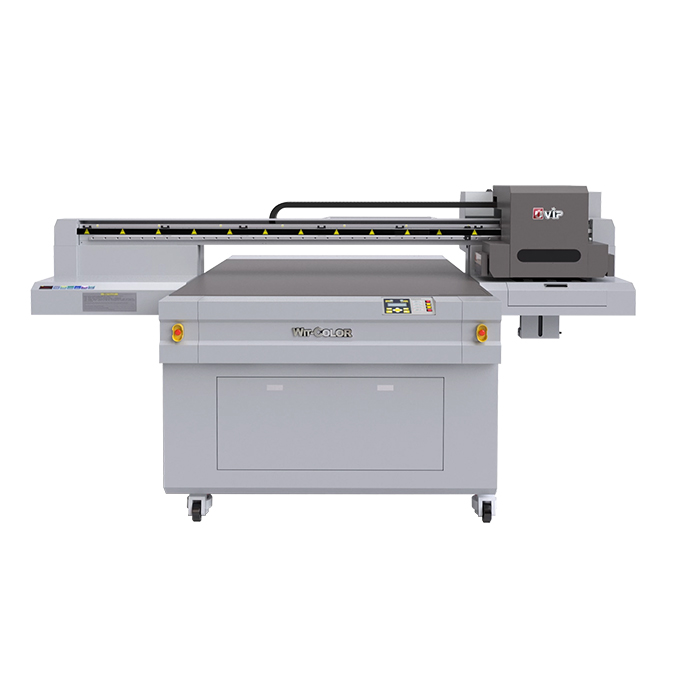

Ultra i3200 1316 Flatbed UV Printer

Previous : Printer Ultra i3200 1704 UV

Next : Printer Ultra i3200 3304 UV

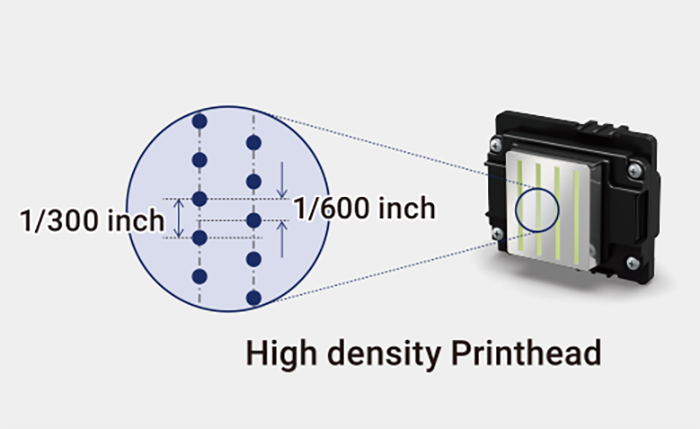

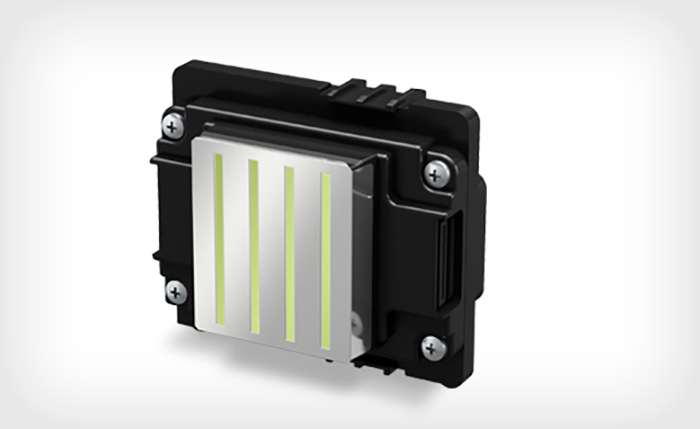

Flatbed UV printer Adopted EPSON i3200 Print Head 3400 All Steel Nozzles Fire Frequency: 30 KHZ Min. Drop Volume: 2.5 PL Imported LED UV Lamp Print Head Quantity: 4H Color: 4/5/6/7 Colors Optional

PRODUCTS

All Series: Latest Printers; Solvent Series Printers; UV Series Printers; Eco-solvent Series Printers; Consumables

Hot News: Ultra i3200 1706S Linear Motor Eco-Solvent Printer – Built for Throughput & Precision; Wit-Color 2026 signchina; Innovation Ignites the Future of Printing!; WIT-COLOR-GEN5 Printhead & UV Printer; WIT-COLOR-Why prices rising

Model	Ultra i3200 1316 Flatbed UV Printer
Printing Technology	UV Printing
Print Head	i3200
Acceptable Media	Type	Metal Plate, Glass, Wooden Board, Acrylic, Mobile Covers etc.
	Width	≦1300*1600mm
	Thickness	≦130mm
	Ink Type	UV Ink: CMYK LCLM W V
Ink Supply	Negative Pressure Ink Supply
Ink Cartridges	Capacity	Color Siphon+White ink auto-stirring
	Color	CMYK+LC, LM+W+Varnish
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Photoprint(Standard) PrintFactory/Onyx /Caldera(optional)
Printing Resolution	Maximum
Speed	Mode	Full Color	W+C	W+C+V
	High Resolution Mode	18㎡/h	12㎡/h	6㎡/h
	Standard Mode	27㎡/h	18㎡/h	9㎡/h
	Production Mode	36㎡/h	24㎡/h	12㎡/h
Ink Curing Method	Dual UV LED Lights
Control System	Win10
Power	3000W
Interface	Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Air Source	N/A
Packing Dimension	Inch	L:80.71 x W:89.76 x H:63.78 1 Inch=25.4 mm
	Meter	L:2.05m x W:2.28m x H:1.62m
Printer Dimension	Inch	L:137.80 x W:90.55 x H:66.93 1 Inch=25.4 mm
	Meter	L：3.5x W：2.3m x H:1.7m
Weight	N.W 880 lb. 400kg 1kg =2.2 lb. G.W 1144 lb. 520kg 1kg =2.2 lb.
Environment	Power On	Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation)
	Power Off	Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation)
Safety Certification	CE Certified
