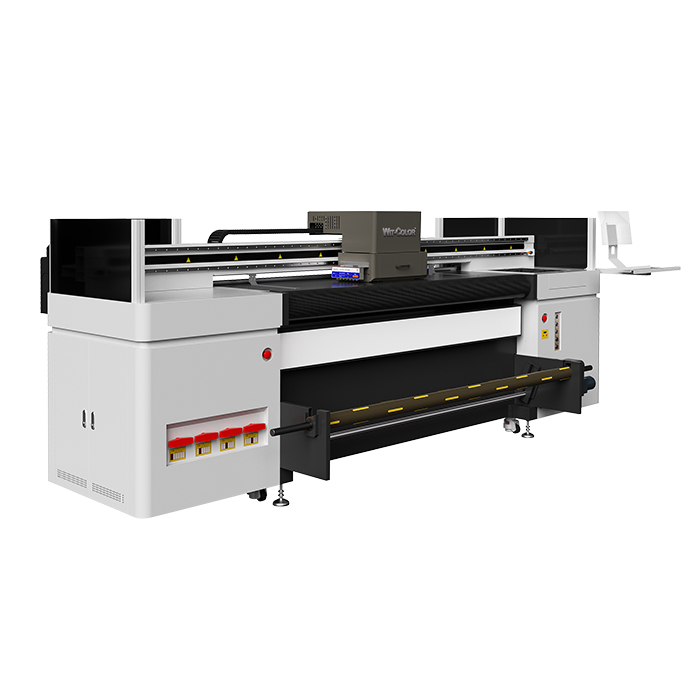

Ultra i3200 1906-Mesh Belt UV Printer

Previous : Ultra i3200 2402 UV

PRODUCTS

All Series: Latest Printers; Solvent Series Printers; UV Series Printers; Eco-solvent Series Printers; Consumables

Hot News: Ultra i3200 1706S Linear Motor Eco-Solvent Printer – Built for Throughput & Precision; Wit-Color 2026 signchina; Innovation Ignites the Future of Printing!; WIT-COLOR-GEN5 Printhead & UV Printer; WIT-COLOR-Why prices rising

Model	Ultra i3200 1906-Mesh Belt UV Printer
Printing Technology	UV Printing
Print Head	EPSON i3200
Acceptable Media	Type	Back-lit flex, Soft film, Wall cloth, Wall paper, PP, Vinly etc. Foam boards, PVC boards and other non-heavy duty boards
	Width	≦1820mm
	Thickness	≦70mm
	Ink Type	UV Ink: CMYK W
Ink Supply	Negative Pressure Ink Supply
Ink Cartridges	Capacity	Color Siphon+White ink auto-stirring
	Color	CMYK+W
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Photoprint(Standard) PrintFactory/Onyx /Caldera(optional)
Printing Resolution	Maximum
Speed	Mode	In-line	Staggered	Triple Rows
	Production Mode	40㎡/h	75㎡/h	110㎡/h
	Standard Mode	30㎡/h	60㎡/h	90㎡/h
	High Resolution Mode	20㎡/h	40㎡/h	60㎡/h
Ink Curing Method	Dual UV LED Lights
Control System	Win10
Power	3000W
Interface	Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Air Source	N/A
Packing Dimension	Inch	L:164.17 x W:64.96 x H:70.87 1 Inch=25.4 mm
	Meter	L:4.17m x W:1.65m x H:1.80m
Printer Dimension	Inch	L:146.85 x W:86.61 x H:64.57 1 Inch=25.4 mm
	Meter	L：3.73 x W：2.2m x H:1.64m
Weight	N.W 1760 lb. 800kg 1kg =2.2 lb. G.W 1980 lb. 900kg 1kg =2.2 lb.
Environment	Power On	Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation)
	Power Off	Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation)
Safety Certification	CE Certified

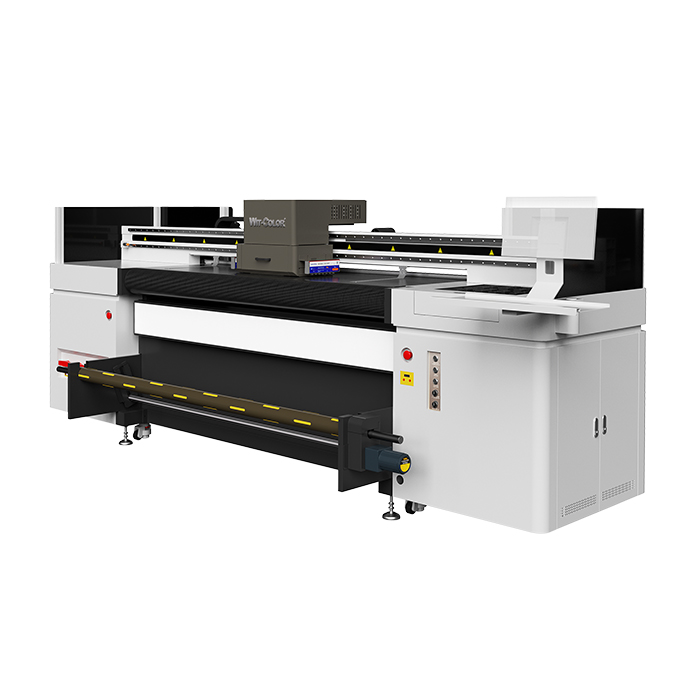

Wit-Color Ultra i3200 1906-Mesh Belt UV Printer
