UVIP KM 5518

Home » Products » UV Printer » LED UV R2R Printer

Model Name:
UVIP KM 5518
Product Description

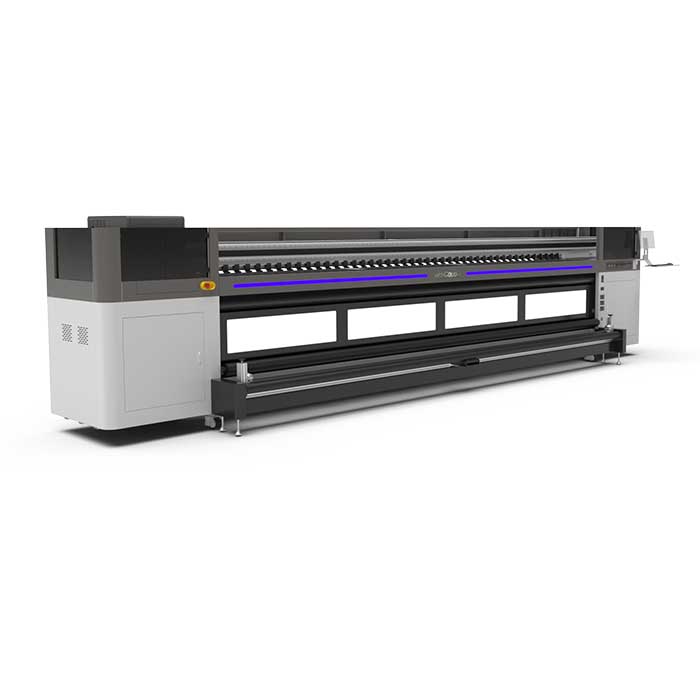

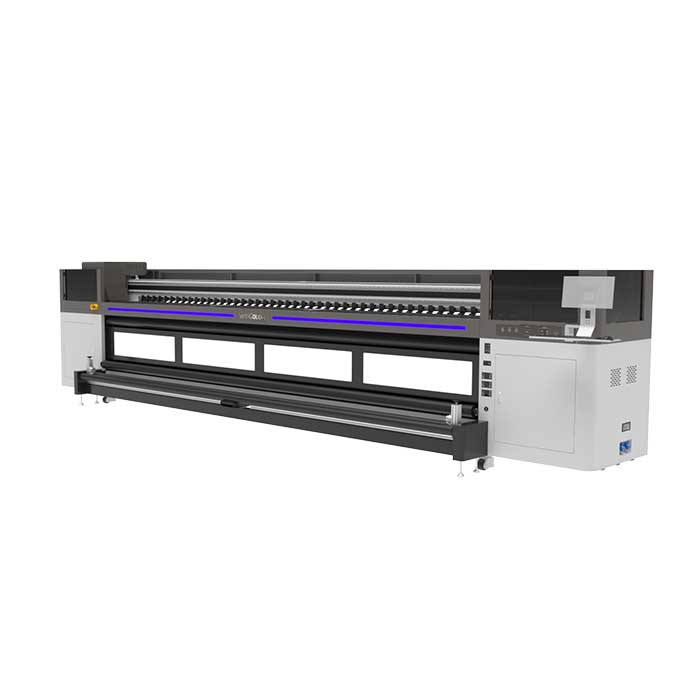

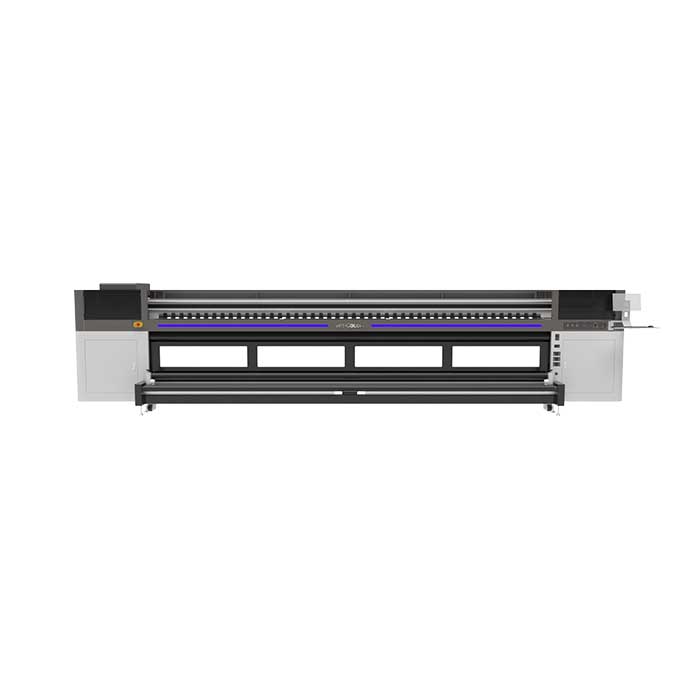

Wit-Color UV printer UVIP KM 5518

For All Advertising Images Use with High Resolution

1. Konica 1024a Print head

2.Max Printing Width 5.3m

3. One roll 5.3m banner

3.High Quality ! High Resolution! Better Performance!

Previous : Printer UVIP K8538

Next : UVIP KM 6813

Overview
Features
Specification
Printing Video

PRODUCTS

LED UV Flatbed Printer

Printer UVIP 1313
Printer UVIP 2513
Printer UVIP 2030
Printer UVlP 3220

LED UV R2R Printer

Printer UVIP 7335
Printer UVIP K8338
Printer UVIP K8538
UVIP KM 5518
UVIP KM 6813

LED UV Hybrid Printer

Printer UVIP 3300
Printer UVIP 1900
Printer UVIP 5500

LED UV i3200 UV Printer

Ultra i3200 A3 Flatbed Printer
Ultra i3200 6090 Flatbed UV Printer
Ultra i3200 1316 Flatbed UV Printe
Printer Ultra i3200 1702 UV
Printer Ultra i3200 1704 UV
Ultra i3200 1706 UV
Ultra i3200 1902 UV
Ultra i3200 1906-Mesh Belt UV Prin
Ultra i3200 2402 UV
Printer Ultra i3200 3304 UV

All Series: Latest Printers; Solvent Series Printers; UV Series Printers; Eco-solvent Series Printers; Consumables

Hot News: Ultra i3200 1706S Linear Motor Eco-Solvent Printer – Built for Throughput & Precision; Wit-Color 2026 signchina; Innovation Ignites the Future of Printing!; WIT-COLOR-GEN5 Printhead & UV Printer; WIT-COLOR-Why prices rising

Model	UVIP KM 5518
Printing Technology	UV Printing
Print Head	RICOH/Kyocera/Konica
Acceptable Media	Type	Back-lit flex, Soft film, Wall cloth,Wall paper,PP，Vinly etc.
	Width	One Roll ≦5300mm
	Thickness	≦3mm
	Weight
Ink Type	UV Ink ：CMYK LCLM W V
Ink Supply	Negative Pressure Ink Supply
Ink Cartridges	Capacity	Color Siphon+White ink auto-stirring
	Color	CMYK+LC、LM+W+Varnish
Image Format	Tiff, JPEG, EPS, PDF
RIP Software	Photoprint(Standard) PrintFactory/Onyx /Caldera(optional)
Printing Resolution	Maximum
Speed	Mode		In-line	Staggered	Triple Rows	Quadruple Rows
	Gen6	Production Mode	40㎡/h	75㎡/h	110㎡/h	150㎡/h
		Standard Mode	30㎡/h	60㎡/h	90㎡/h	120㎡/h
		High Resolution Mode	20㎡/h	40㎡/h	60㎡/h	80㎡/h
	Kyocera	Production Mode	70㎡/h	140㎡/h	N/A	N/A
		Standard Mode	50㎡/h	100㎡/h	N/A	N/A
		High Resolution Mode	25㎡/h	50㎡/h	N/A	N/A
	Konica	Production Mode	N/A	65㎡/h	100㎡/h	N/A
		Standard Mode	N/A	55㎡/h	85㎡/h	N/A
		High Resolution Mode	N/A	40㎡/h	60㎡/h	N/A
Ink Curing Method	Dual UV LED Lights
Control System	Win10
Power	4500W
Interface	Gigabit Ethernet
Power Supply	AC 220V±10%, 50/60 HZ
UPS	3KVA
Air Source	N/A
Packing Dimension	Inch	L:298.43 x W:66.93 x H:82.68 1 Inch=25.4 mm
	Meter	L:7.58m x W:1.7m x H:2.1m
Printer Dimension	Inch	L:311.02 x W:70.86 x H:77.17 1 Inch=25.4 mm
	Meter	L：7.9 x W：1.8m x H:1.96m
Weight	N.W 1636.36 lb. 3600kg 1kg =2.2 lb. G.W 1909.09 lb. 4200kg 1kg =2.2 lb.
Environment	Power On	Temperature 59℉ to 90 ℉[15℃ to 32℃ ] Humidity:35 to 80% (No Condensation)
	Power Off	Temperature 41℉ to 104 ℉[5℃ to 40℃ ] Humidity:35 to 80% (No Condensation)
Safety Certification	CE Certified
